Vehicle Platform: Tiago,Tigor & Osprey
ECU Name: Hella Body Control Module (BCM)
DTC Troubleshooting Data
Version: 2.0
Date: 22-10-2018
Author: Parag K
Page: 441 of 737
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
After rectification, ensure the following points by using TML diagnostic tool before handing over to customer.
Check DTC U100E - 23 is not logged

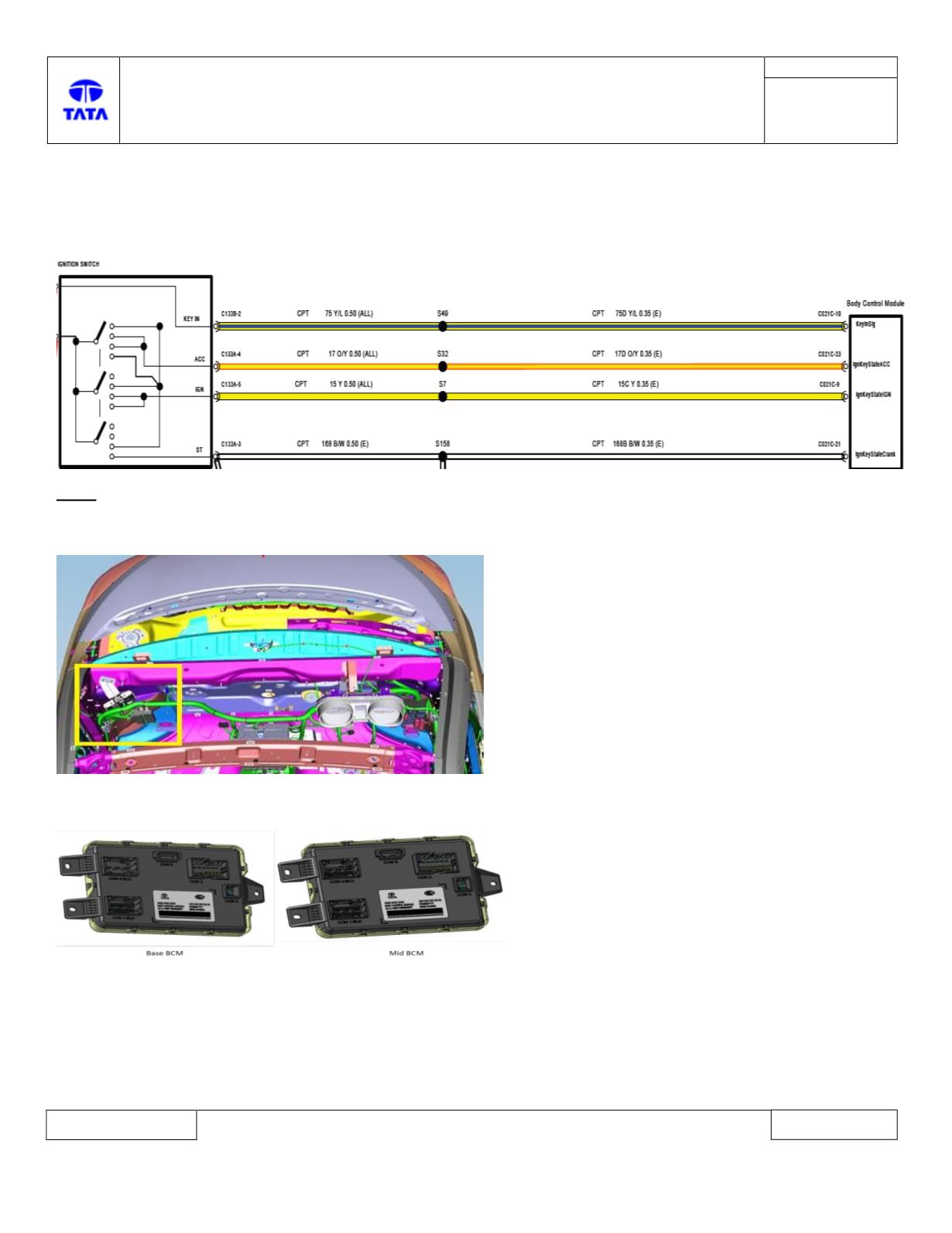

Circuit Schematic Diagram:-
Note:
For detailed information please refer latest BCM wiring harness schematic.
Component Location & Image:-
Connector Location:
