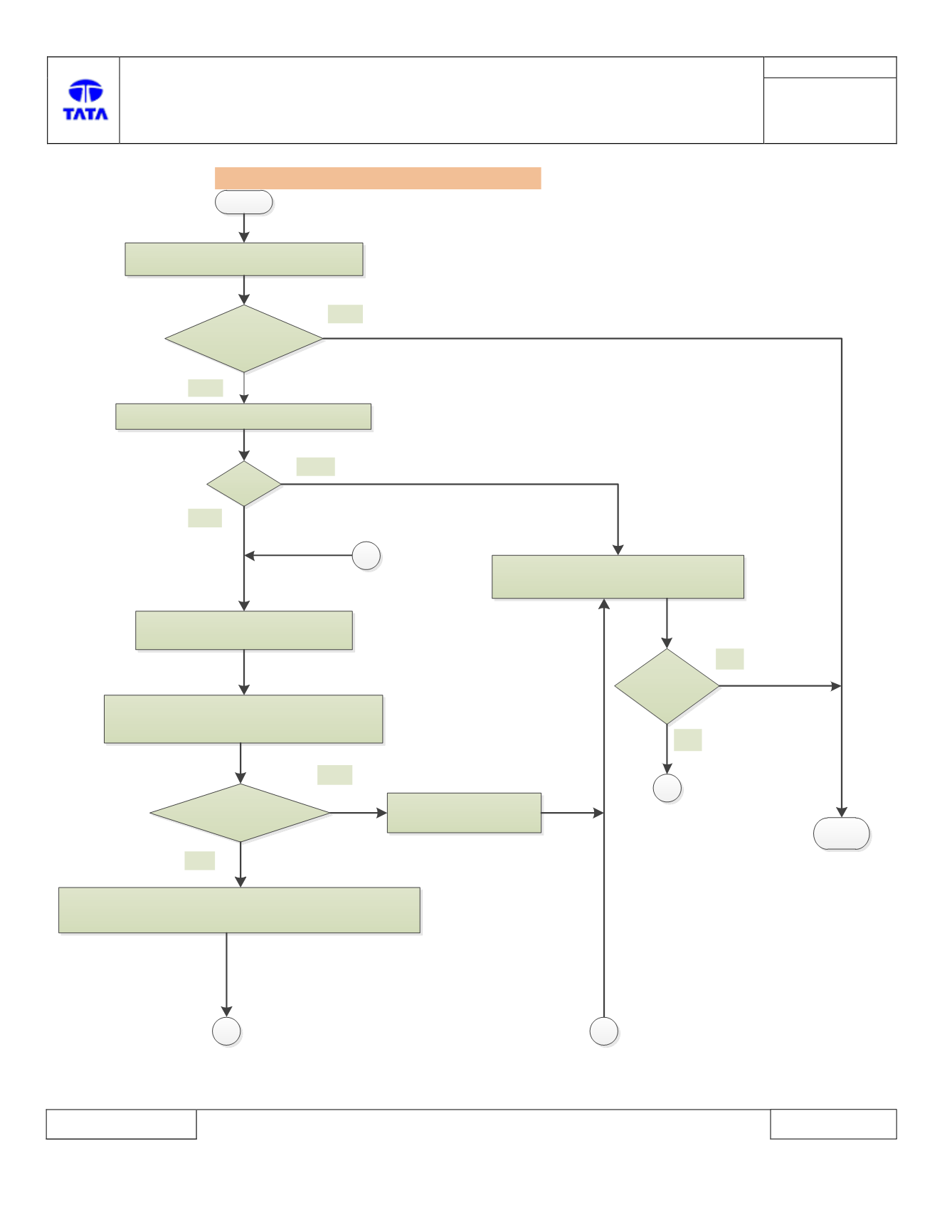

B220A – 23: Front fog Lamp control Switch – Signal Stuck Low

START

Connect Diagnostic tool and check for DTCs

Is DTC B220A-23

present?

STOP

Check DTC present is Permanent or Historic

Is History?

1. Press the front fog lamp switch and release it.

2. Clear DTC

Is DTC B220A-

23 present?

YES

Disconnect vehicle battery connection.

(Please follow the safety guidelines)

Check BCM and Facia / Fog lamp switch connectors

for terminal backout

Are connectors loose?

Reconnect connectors firmly

YES

1.Remove BCM side wiring harness Connector.

2.Perform visual check of connectors for pins bent or damaged etc.

YES
