BCM ECU Faulty
Replace BCM ECU
1.Take out right turn Indicator lamp
bulb.
Continuity
found?
Correct BCM side wiring harness
(Short To Ground)
YES
Check countinuty between BCM connector pin
[C2-
15]
and BCM ground pin
[ C1-34]
1.Remove right turn indicator lamp mating
connector
2. Perform the visual check of connectors for pin
bend or damaged etc.
Is connector
faulty?
Correct connector fault
(Terminals Bend)
YES
NO
Check continuity between two terminals of
right turn indicator lamp
Continuity
found?
1. Lamp is faulty
2. Replace right indicator lamp
NO
YES
NO
A
B

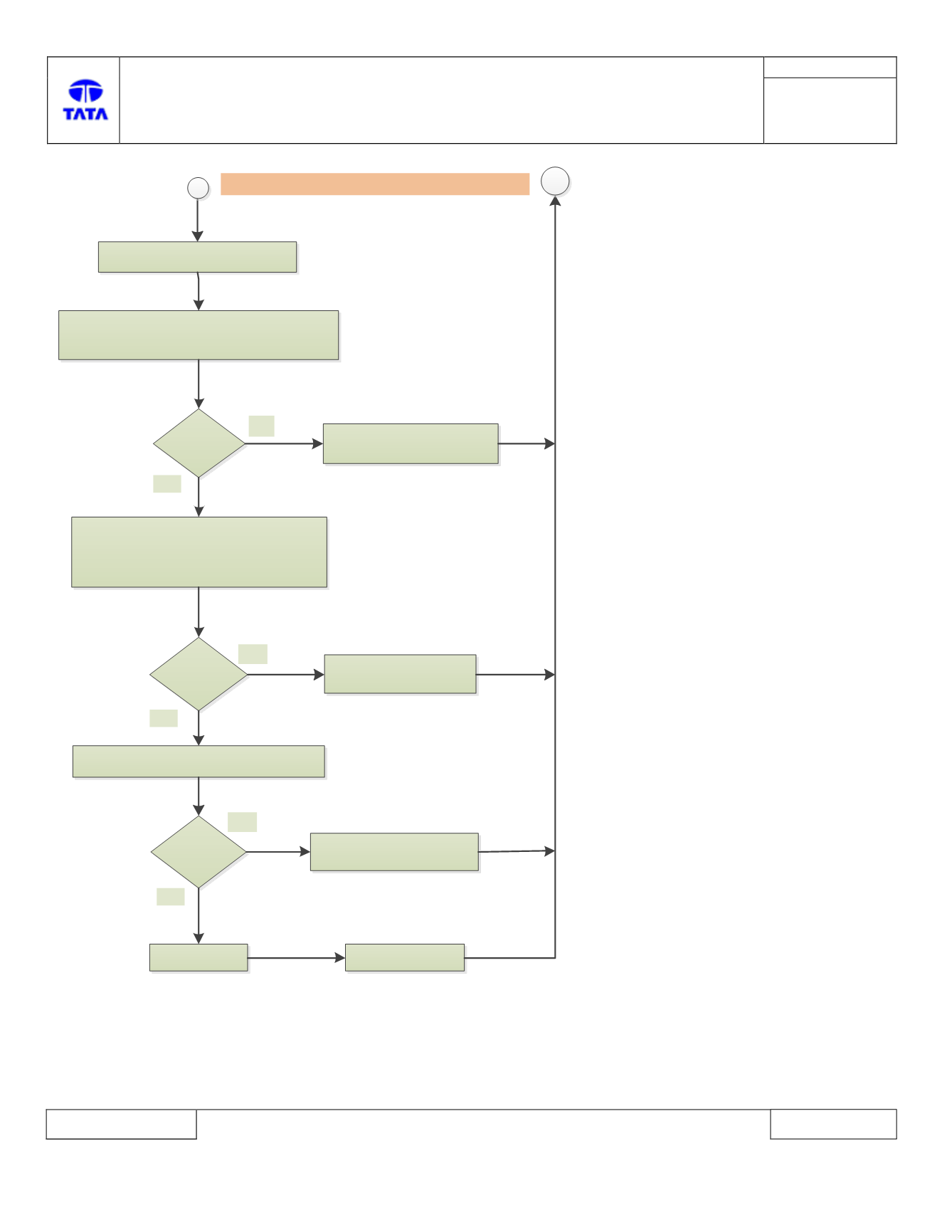

B224C – 11: Right Turn Indicator Lamp circuit –Short To
Ground
