Vehicle Platform: Tiago,Tigor & Osprey
ECU Name: Hella Body Control Module (BCM)
DTC Troubleshooting Data
Version: 2.0
Date: 22-10-2018
Author: Parag K
Page: 181 of 737
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
BCM ECU Faulty
Replace BCM ECU
Is connector
faulty?
Correct connector fault
(Terminals Bend)
YES
1.Take out right front fog lamp bulb.
2. Check if bulb is blown
Continuity found?
Correct BCM side wiring harness
(Short To Battery)
YES
NO
Check countinuty between BCM connector pin
[C2-19]
and BCM battery
[ C3-2/ C3-1]
1.Remove right front fog lamp mating connector
2. Perform the visual check of connectors for pin bend or
damaged etc.
Is connector faulty?
Correct connector fault
(Terminals Bend)
YES
NO
Bulb blown?
Replace the bulb
(Open Circuit)
1.Remove all BCM connector
2.Take out right front fog lamp output wire
[C2-19]
from
connector
3.Reconnect all connectors including battery
4.Check if right front fog lamp is ON?
right front fog lamp
is ON?
Reconnect all
connectors firmly
YES
NO
YES
NO
NO
A
B

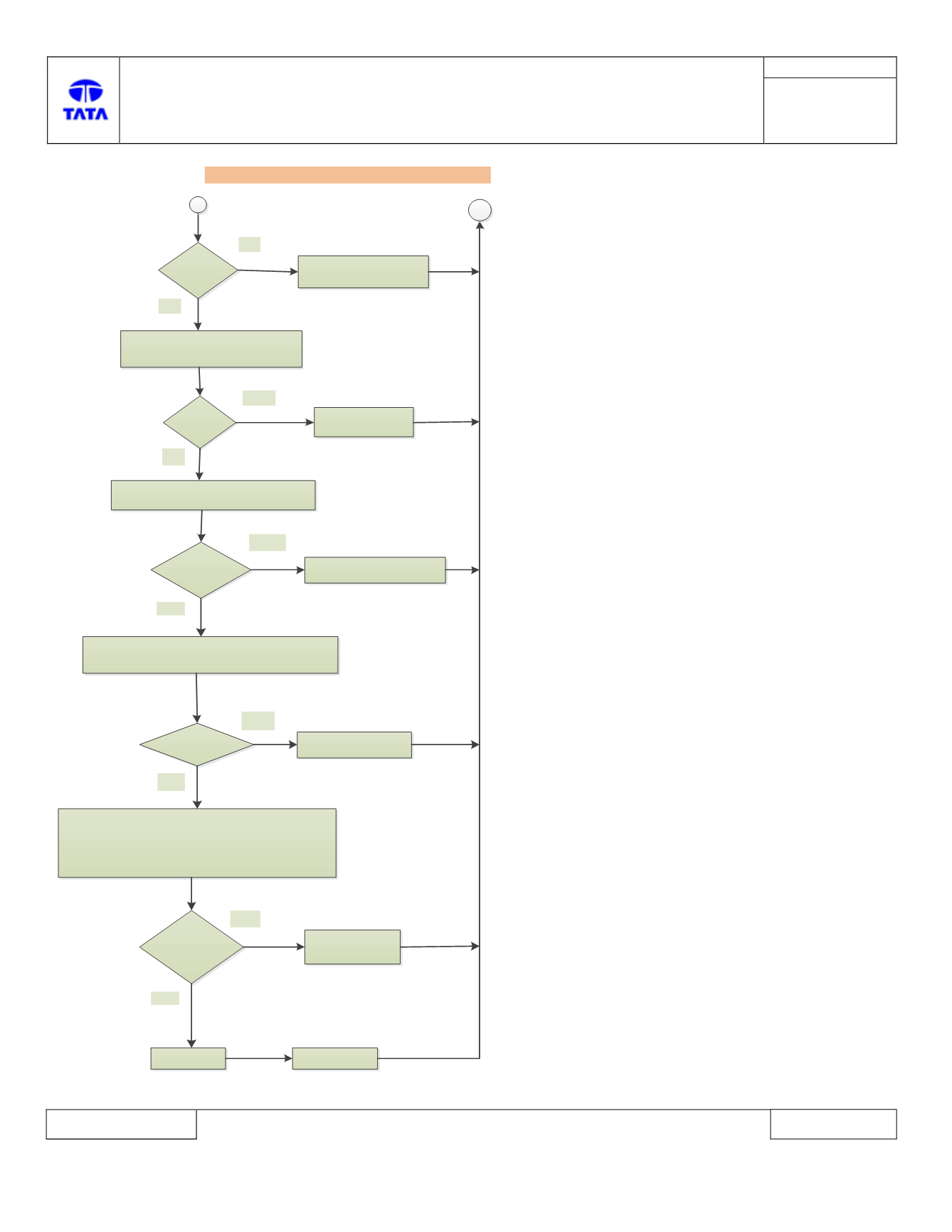

B2242 – 15: Right front fog Lamp circuit –Short To Battery / Open
