TML HARRIER Infotainment DTC Troubleshooting guide
Version: 0.3 Draft
Date: 17-Aug-18
Author:
Vijaya Bhaskar
B/Pritam Bansod
Page: 74 of 109
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Once DTC is rectified, confirm all Infotainment button panel keys/switches are working as expected.

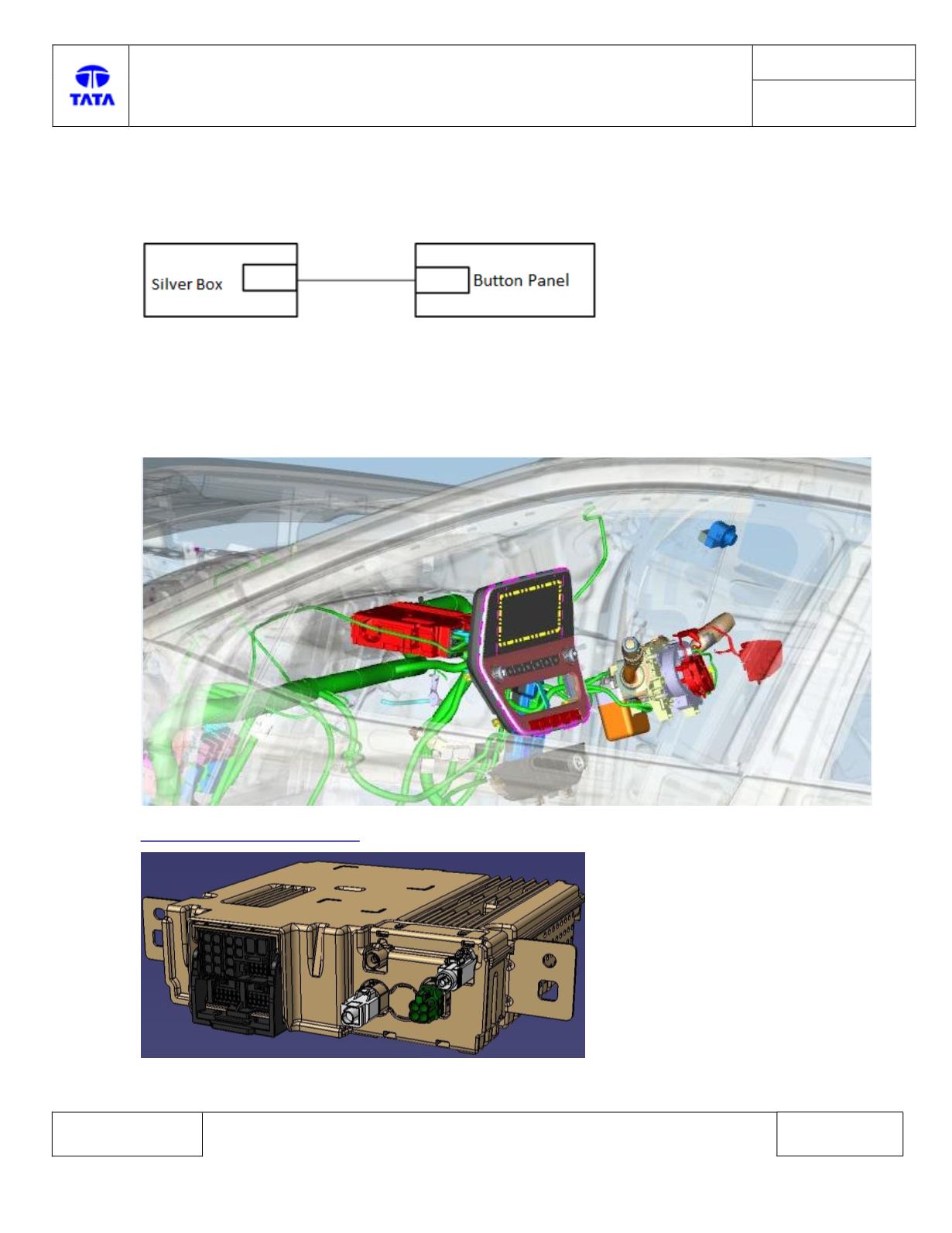

Circuit Schematic Diagram:-
Component location & Image:-
Silver Box Connector Location:
