TML HARRIER Infotainment DTC Troubleshooting guide
Version: 0.3 Draft
Date: 17-Aug-18
Author:
Vijaya Bhaskar
B/Pritam Bansod
Page: 42 of 109
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
DTC’s confirmation:-
Once the DTC is rectified, a valid media device like USB/SD/iPod or Radio should be played using infotainment
system to confirm proper working of all tweeter.

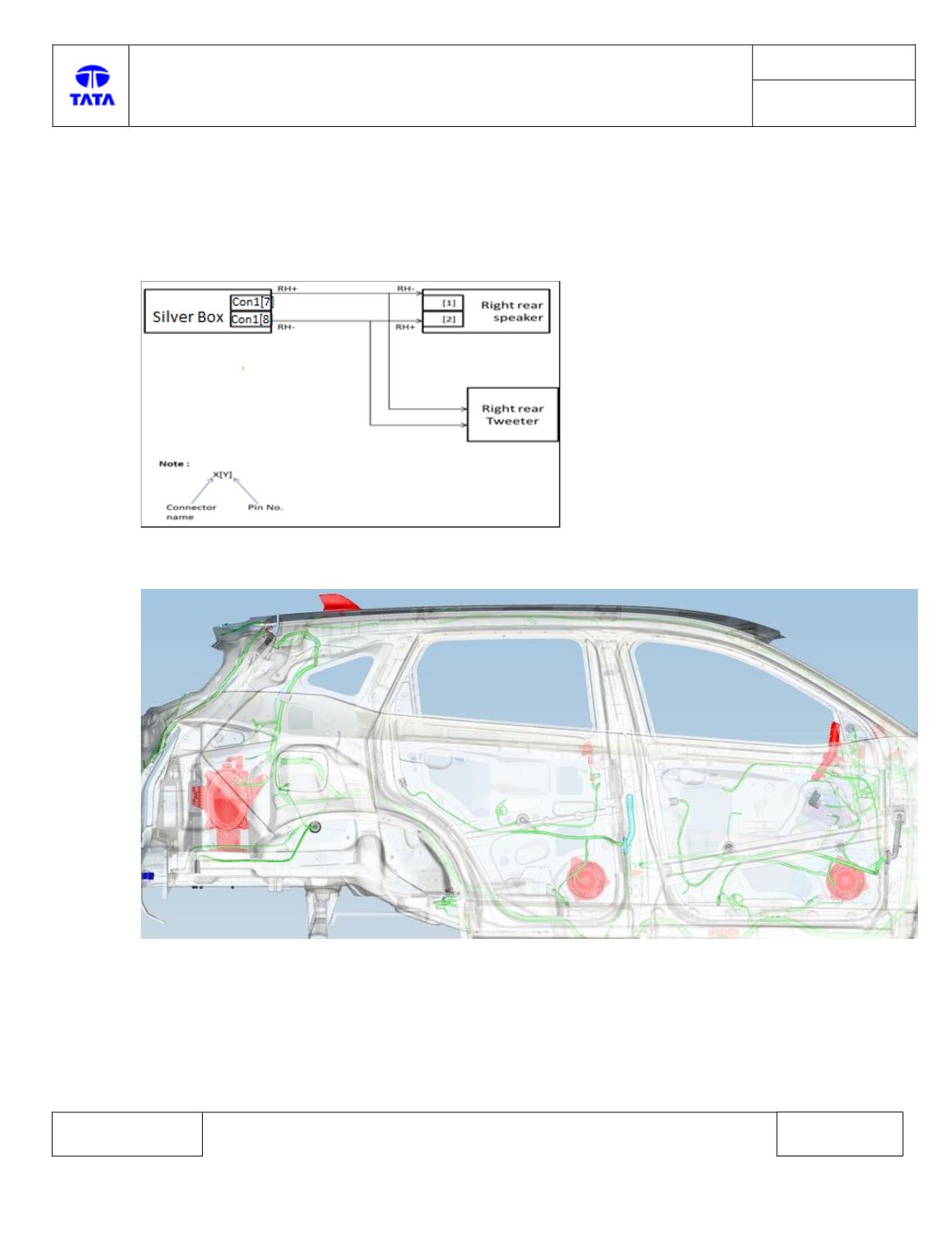

Circuit Schematic Diagram:-
Component location & Image:-
