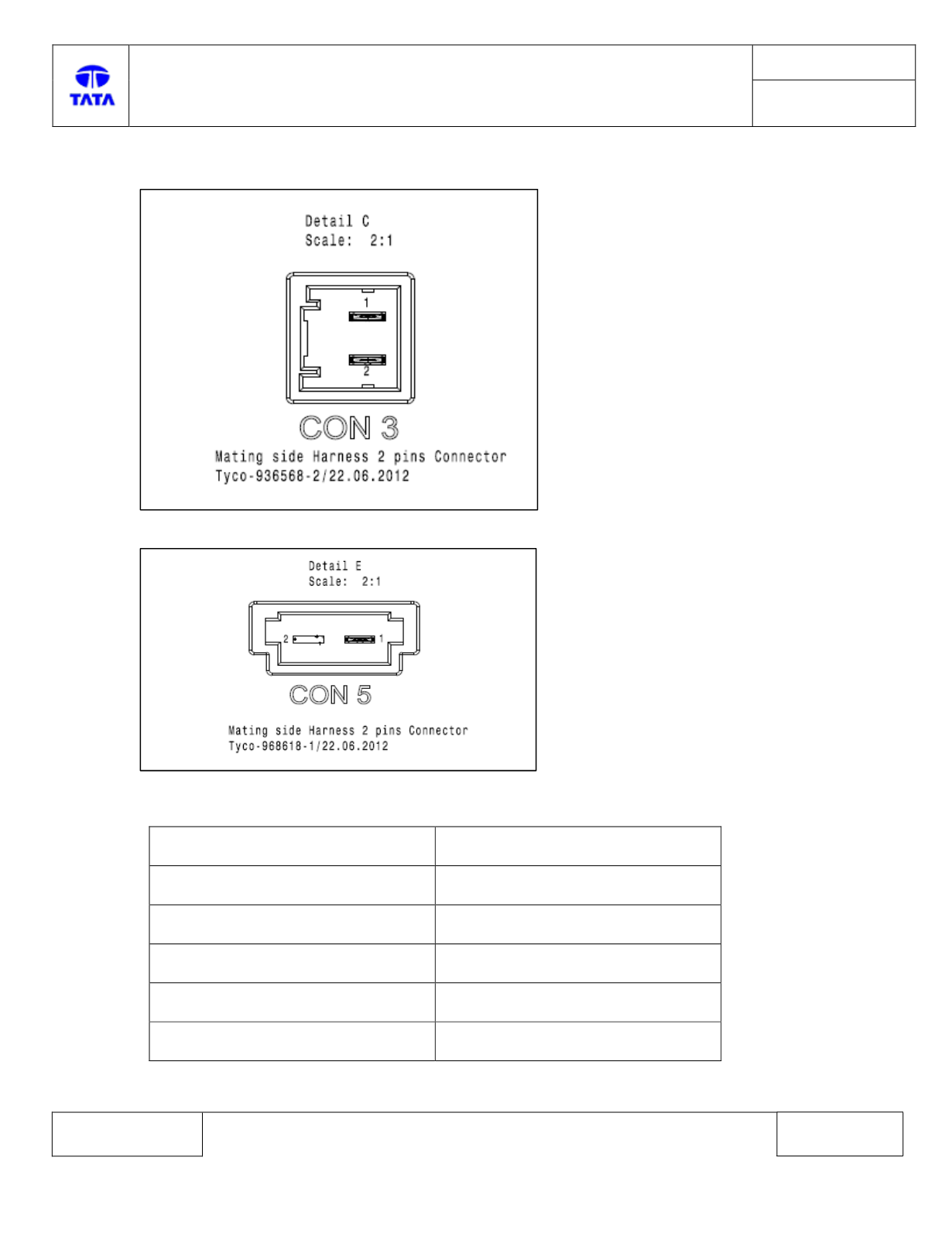

BCM Connector C ECU side pin out
BCM Connector E ECU side pin out
BCM ECU pin details:-
Description
ECU pin
CAN_H chasis
A48
CAN_L chasis
A49
Battery
C1,C2 and E1
Ignition input
A9
Battery ground
A34, A47 and B26
