ELECTRICAL
262

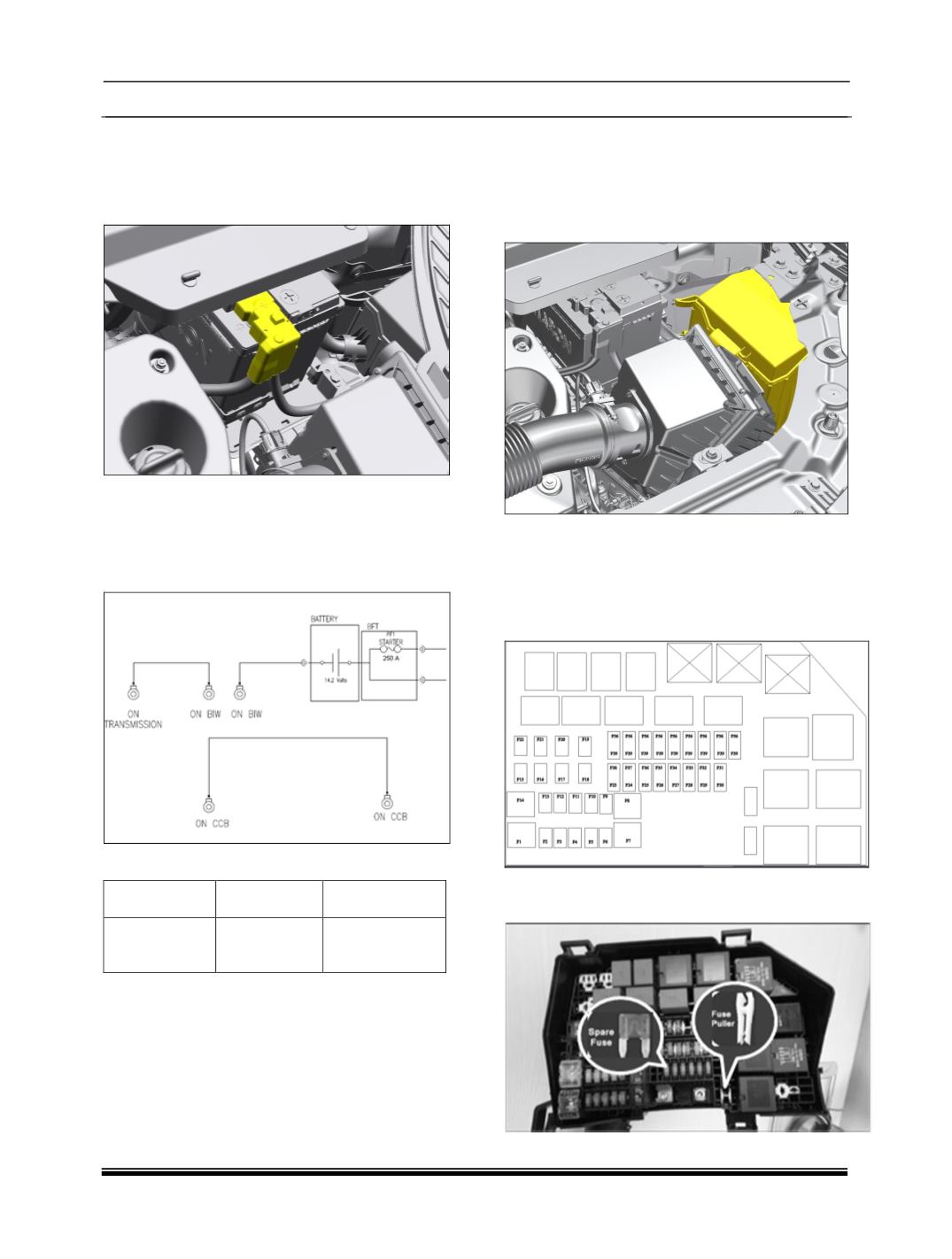

28.1 BATTERY MOUNTED FUSE BOX
LOCATION
This Battery Mounted Fuse box is part of Front
wiring harness.
This fuse box is directly mounted on Battery
positive terminal and has fuse for Starter Motor
and gives connection for battery supply to Engine
compartment Fuse
CIRCUIT DIAGRAM
FUSE DETAIL
FUSE NO.
FUNCTION
FUSE RATING
PF1
STARTER
MOTOR
250A
This is a in-built fuse in Battery Mounted Fuse box
for Starter Motor.
WARNING
If Fuse box cover is removed for any reason, it
should be refitted properly at its original position.
28.2 ENGINE FUSE AND RELAY BOX
This fuse box is directly connected to Battery
Positive terminal through Battery Mounted Fuse
box and Bus-bar structure is used in this fuse box.
NOTE
The fuse box layout is for reference purpose only.
Please refer the sticker provided inside the fuse
box cover.
Fuse box Sticker layout
Fuse Puller and Spare Fuses location inside
Engine Compartment Fusebox :
