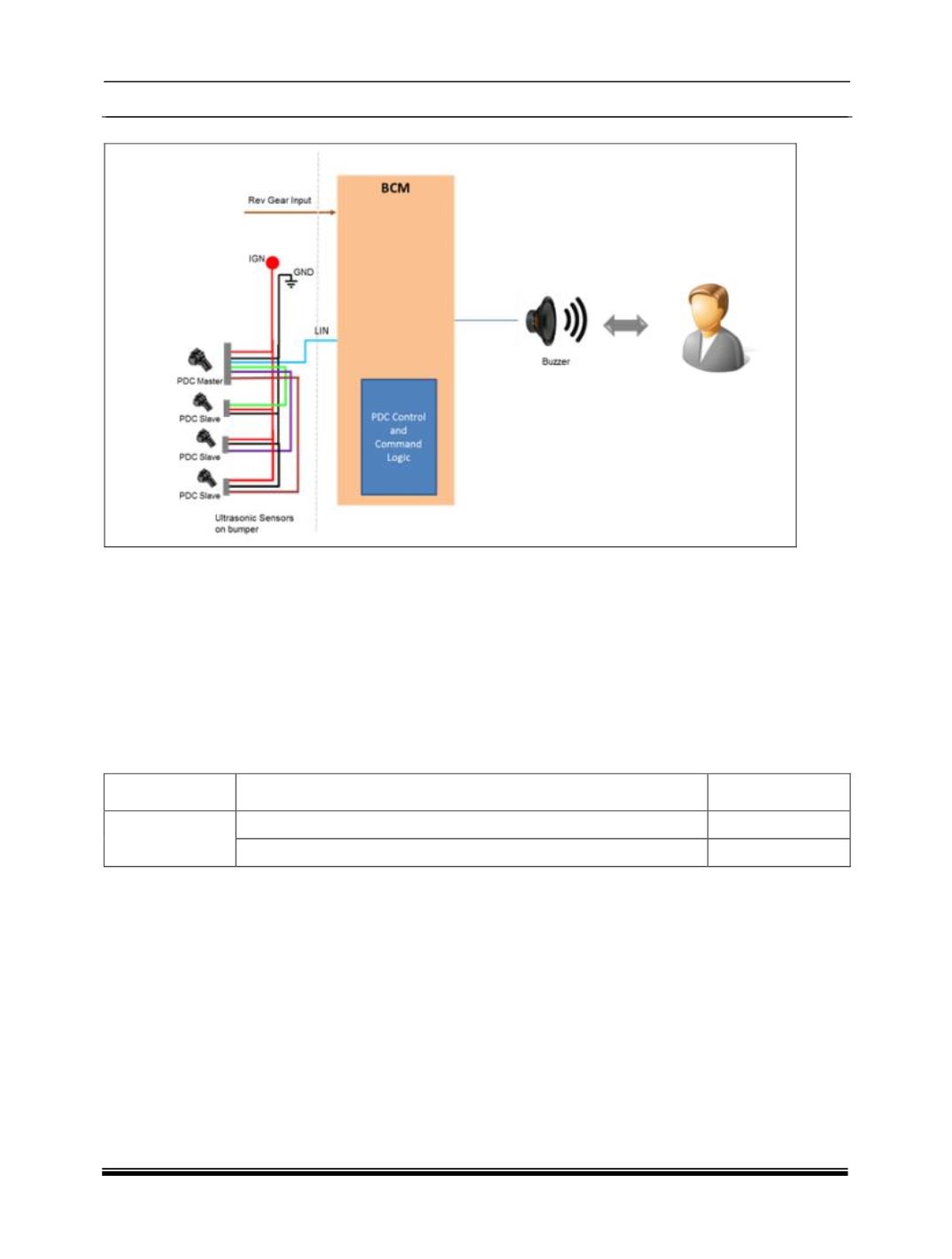

b. Rear Only LIN System with Buzzer

10.1.2 Conditional Requirements

Activation –

• IGN ON

• Reverse gear engaged

Exit Condition

• IGN OFF

• Reverse gear disengaged

10.1.3 Operating Voltage Range

DESCRIPTION

REQUIREMENT

VOLTAGE

Auto Relock.

Normal operating voltage

12V

Min & Max operating voltage range

9V-16V
