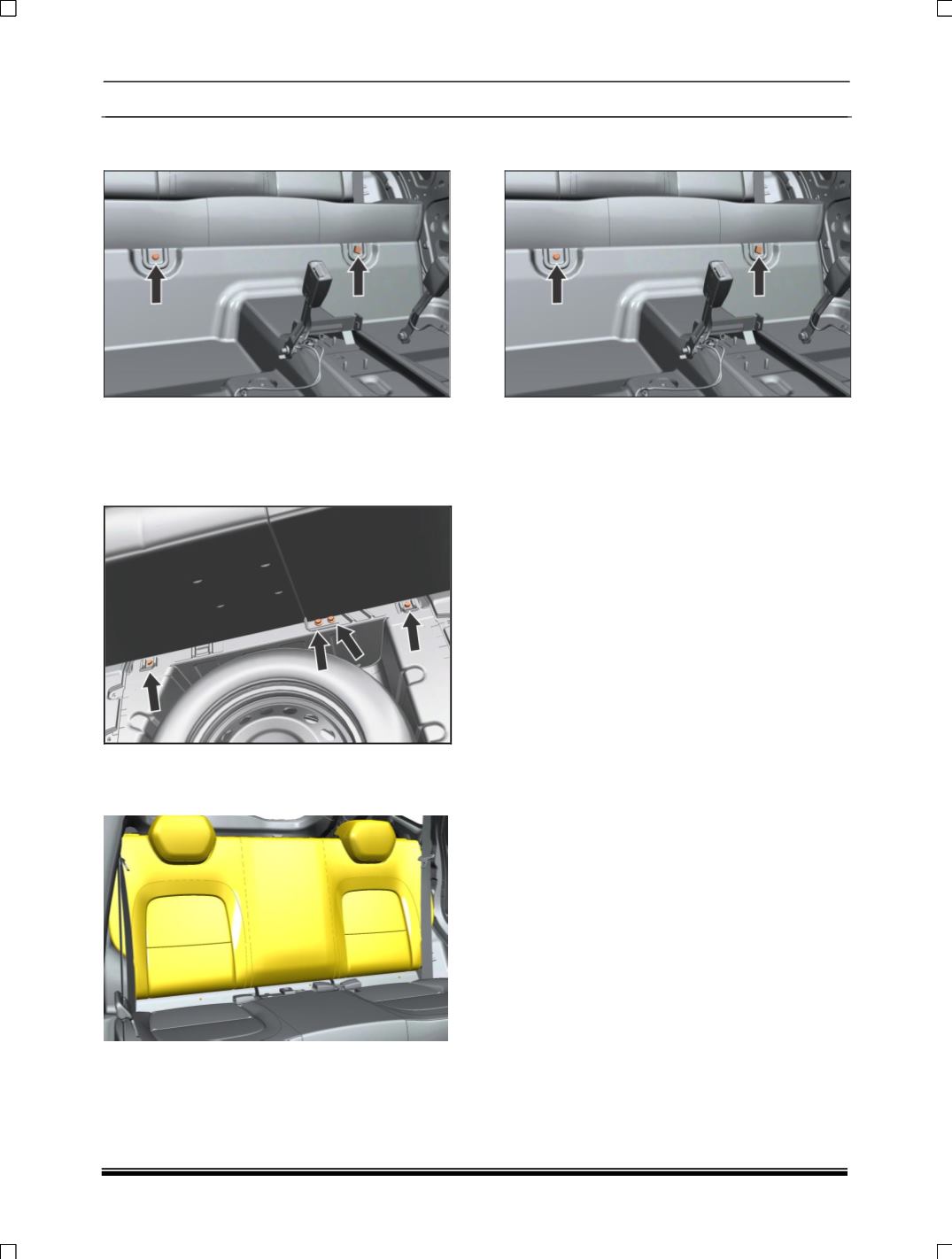

4. Remove Rear Seat mounting screw as
shown in figure.
5. Remove Rear Seat.
FITMENT
1. Fit rear seat backrest side bracket mounting
fasteners from both side.
2. Lift the backrest and apply force from center,
such that both the latches are mounted firmely
to striker provided in the body.
3. After latching tight the striker screws.
4. Fit Rear Seat mounting screw as shown in
figure.
NOTE
Lift the belts and buckle while cushion folding to
design position
