BODY

43

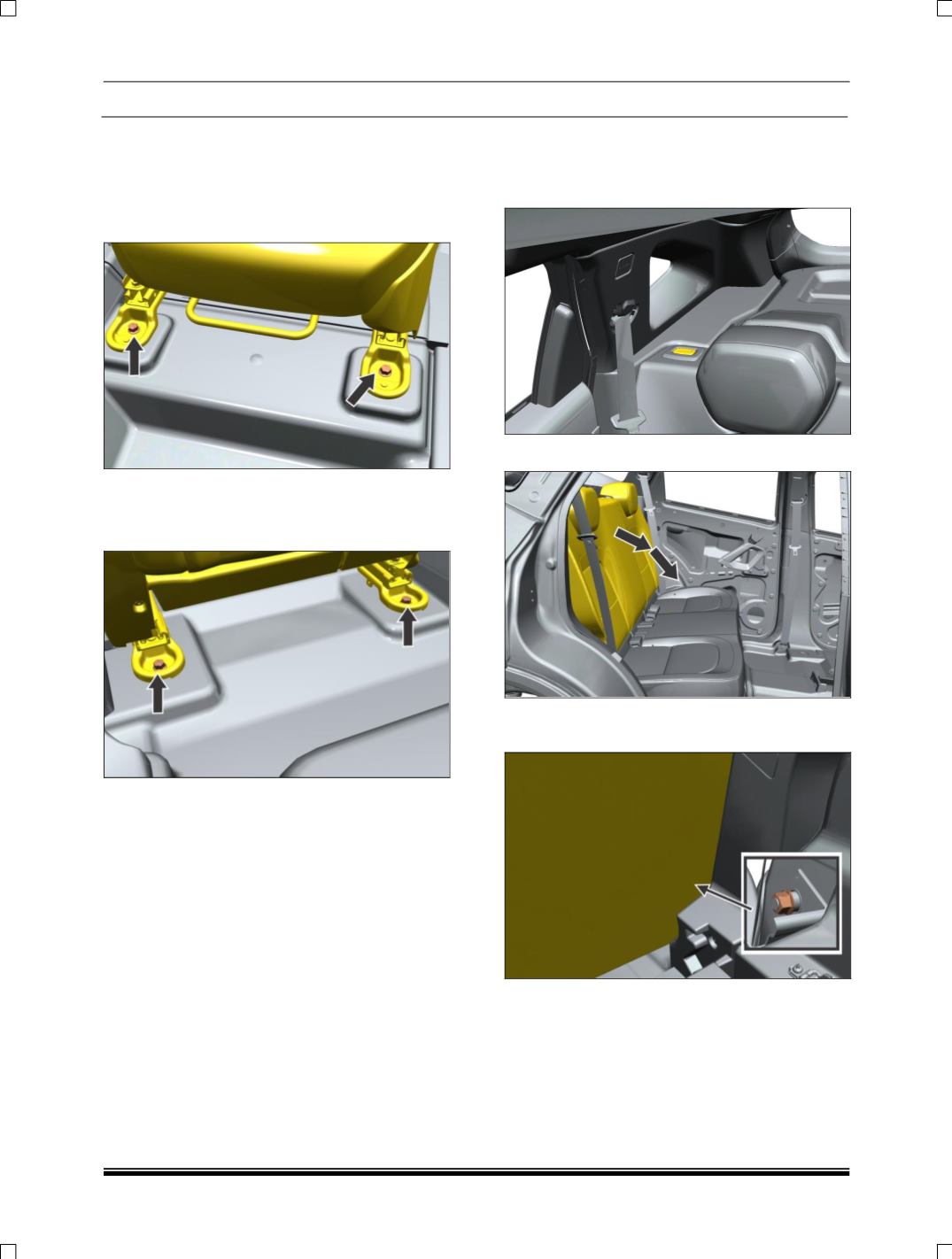

FITMENT

1. Locate the front seat assembly in BIW using

Locating Pin.

2. Fix the seat assembly at front by tightening two

mounting screws.

3. Slide the front seat forward most position.

4. Fix the seat assembly at rear by tightening

three mounting screws.

2.24 REAR ROW SEAT

REMOVAL

1. Press Rear Seat back lock.

2. Fold the seat backrest.

3. Loosen and Remove the nut after fold seat

showing in fig .
