579 / 948
BODY
21

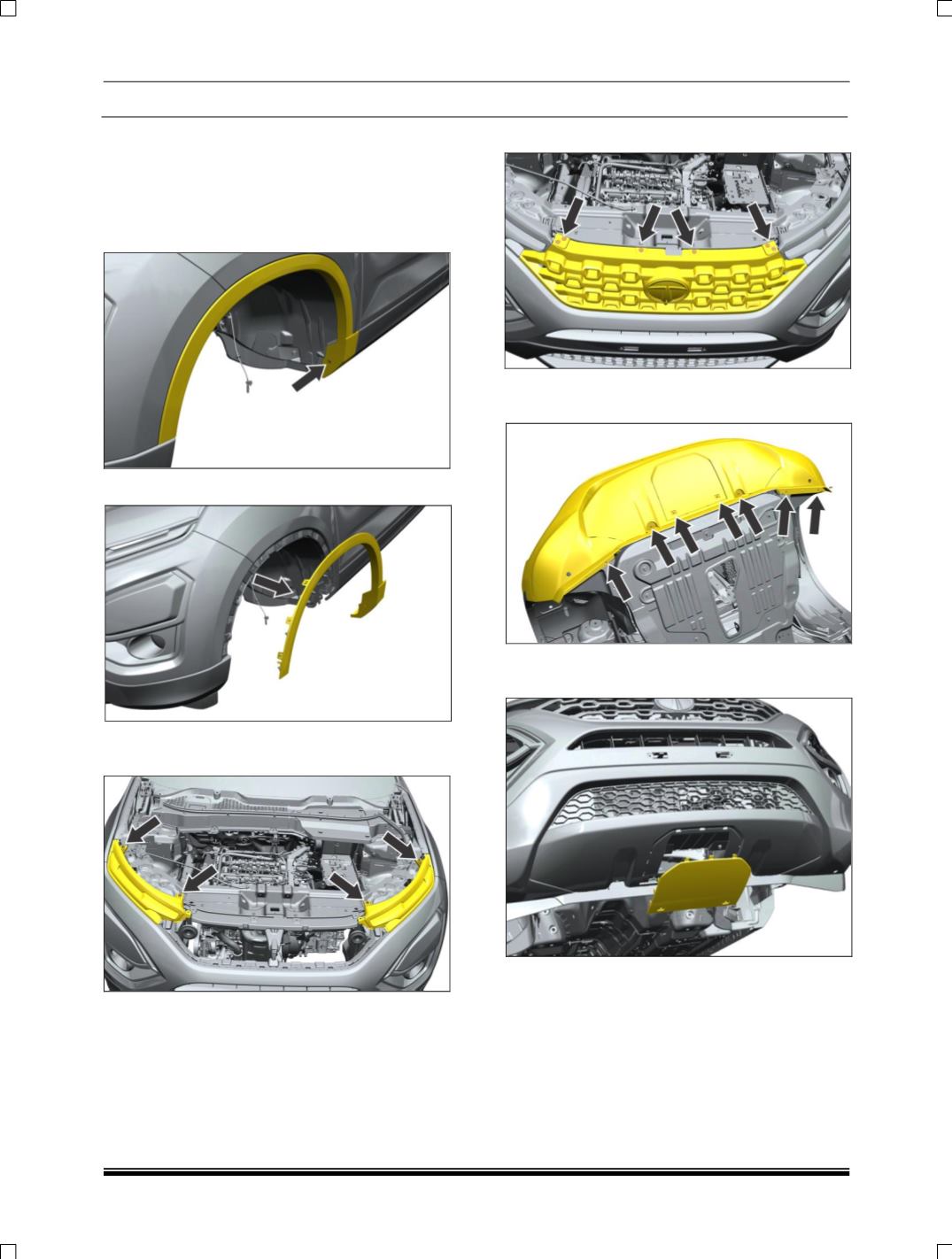

2.7 FRONT BUMPER
REMOVAL
1. Open the bonnet.
2. Remove clip push button of front cladding,
fender.
3. Pull out the cladding fender.
4. Remove the bolts from the bumper which hold
the head lamps.
5. Remove six clip push button of front grill assy.
6. Loosen and remove the mounting screws
from the bottom side of the bumper.
7. After remove the mounting Pull out the tow
hook cover of bumper.
