28.After above steps, hold the RTB properly and
slowly lower fixture with the help of jacks
supporting the RTB fixture.
29.Incase of installation fixture is not available
and jack is used as per point no 18, after
above steps, hold the RTB properly and slowly
lower the two jacks supporting the RTB at
equal level.
30.Once the coil springs are sufficiently relaxed
and free to move remove them and now the
RTB can be removed from the vehicle along
with PHR and pivot brackets attached to it
Note:
Tightening with snug torqueing and angle
torqueing of Rear Suspension on body to be done
in ECIE condition only. No jacking to be done on
beam.
INSTALLATION
Follow Reverse procedure for Installation of
Torsion Beam.
NOTE:
Apply soap water to the bush and the bore of
twist beam assembly before installation.
Tightening of RTB on body to be done in
ECIE condition. No jacking to be done on
beam, avoid oil based lubricant while pushing
the bushes in eye.
All RTB mounting fasteners to be fitted in
ECIE condition (applicable wherever bush
fasteners)
INSTALLATION
Follow Reverse procedure for removal of Torsion
Beam.

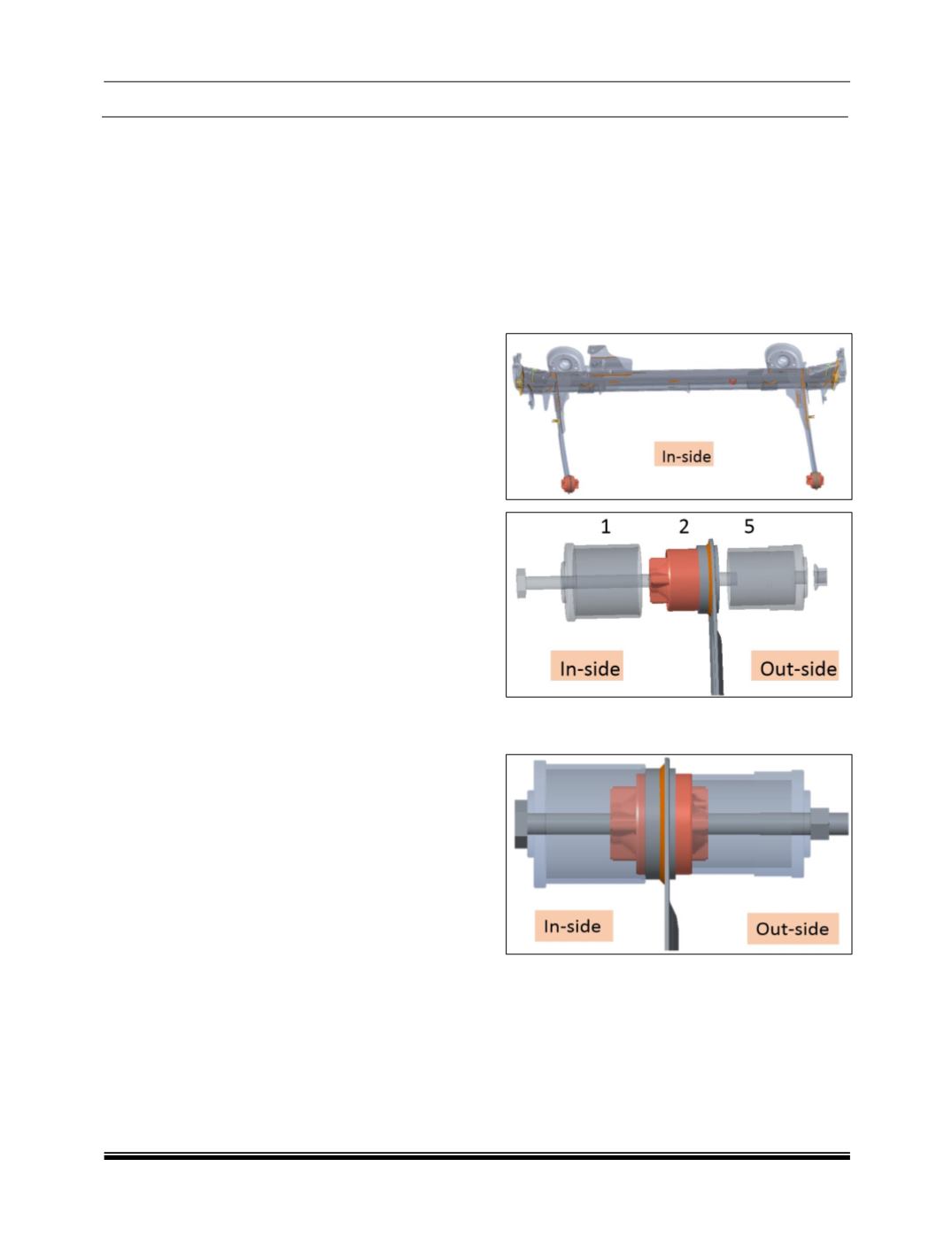

22. RTB BUSH INSTALLATION
1. Place the Spacer Cup (1) inside of RTB
2. Place Puller cup (5) outside of RTB align with
RTB Bush (2)
3. Insert the bolt from spacer cup(1) side and
tighten the nut until RTB Bush will come out
4. While
bush
fitment,
no
undue
deflection/twist/bending to be induces on the
blade
5. Finally Tighten the nut until the bush come out
from the RTB
