BODY

36

ASSEMBLY

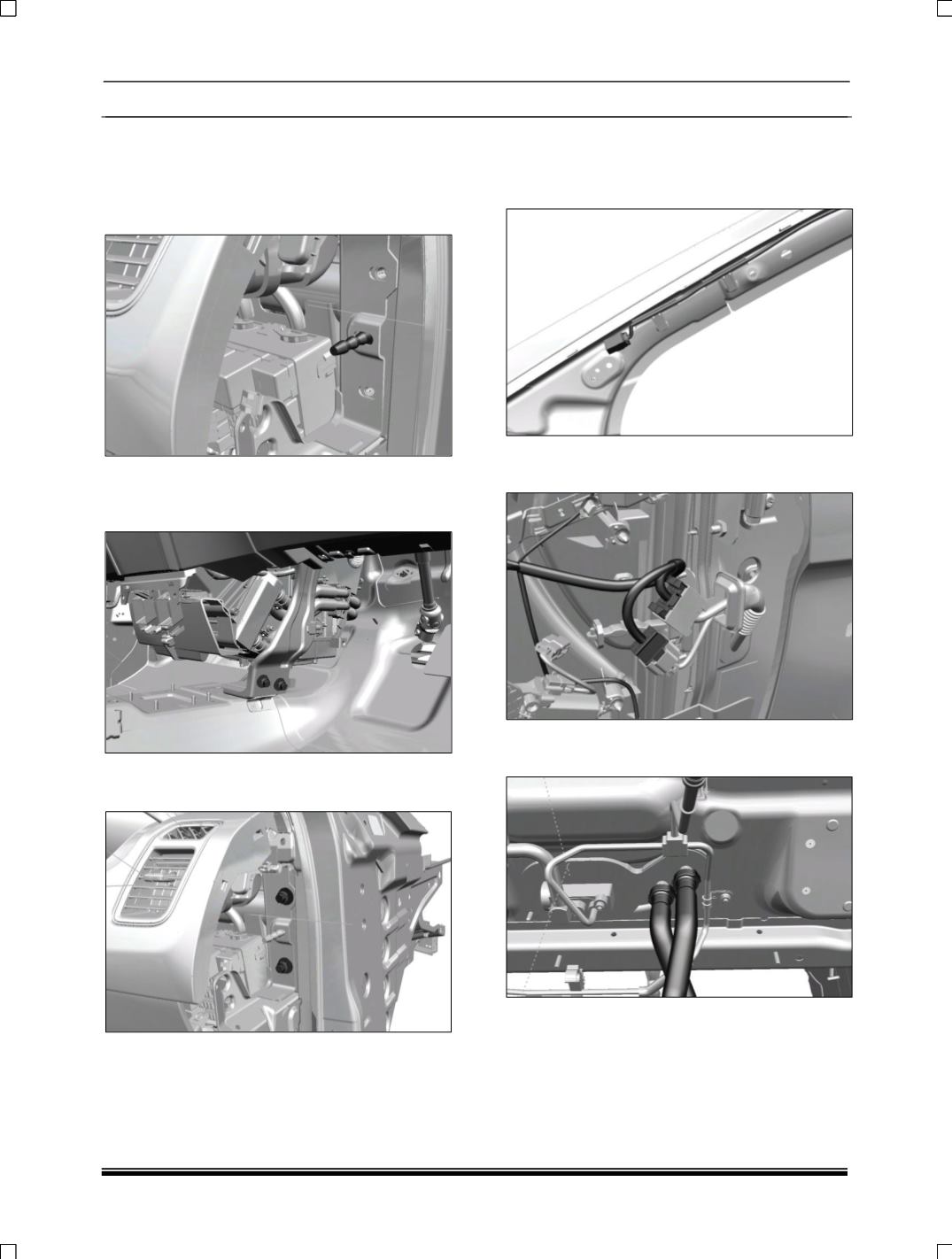

1. Assemble dashboard along with HVAC/FATC

and steering.

2. Assembly place on the two locaters on LH

and RH as shown in fig.

3. Connect all wiring harness and earthing

connections.

4. Tighten trailing link bottom fixing screw.

5. By using battery tool tighten the fasteners on

LH and RH side as shown in fig.

6. Connect steering column.

7. Connect roof lamp connection.

8. Press fit the end cover RH and LH.

9.9.15 WIRE HARNESS SERVICING

REMOVAL

1. Remove wire harness connection on a pillar.

2. Remove door and main wire harness

connections on both sides

3. Remove the heater tube connections, drain

tube connections.
