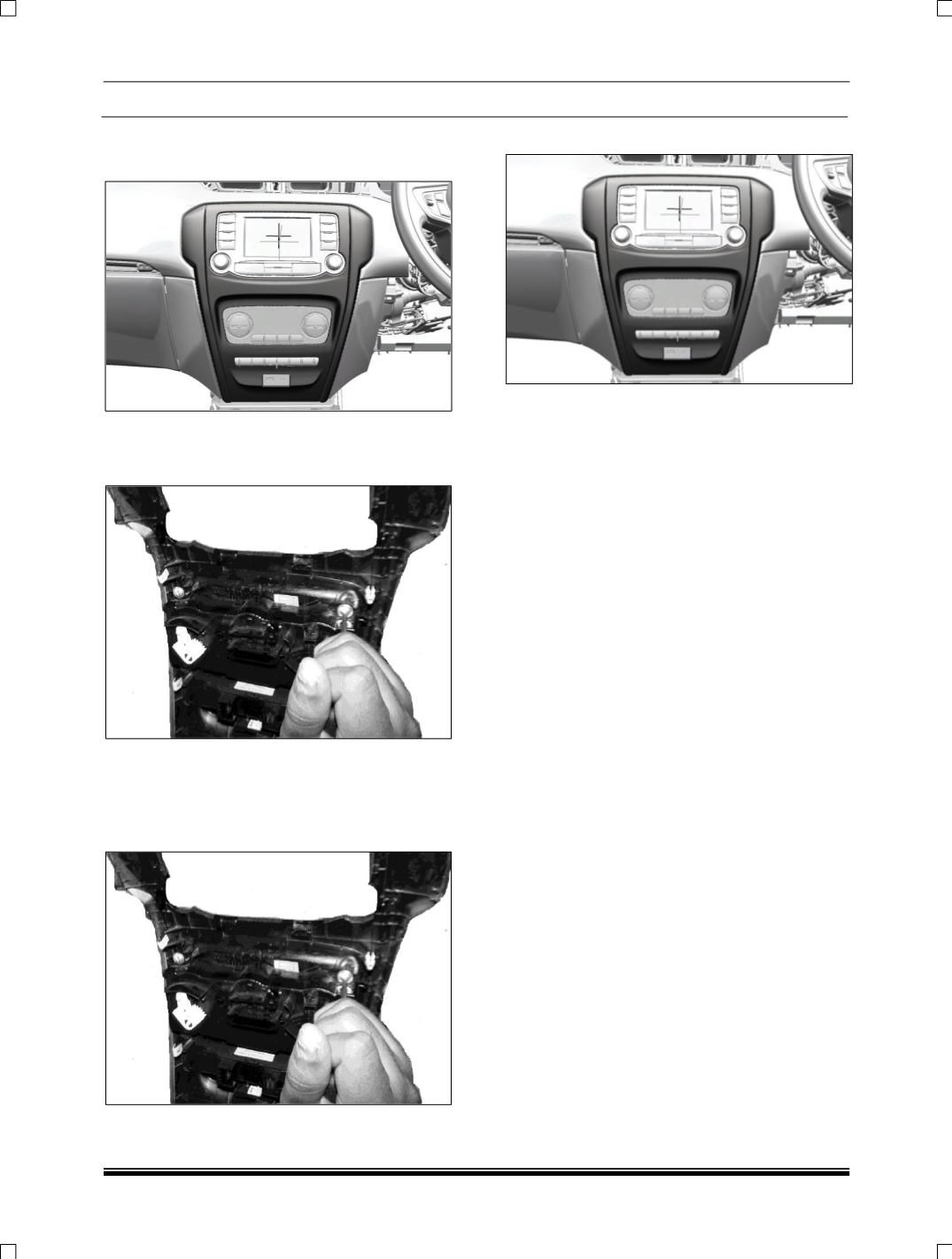

9.9.13 CLIMATE CONTROL MODULE FIXINGS
1. Remove fascia cover.
2. Disconnect the electrical connection of panel.
3. Unscrew the climate control module fixing
from the fascia cover.
4. Take out the control panel.
ASSEMBLY
1. Tighten the fasteners of climate control
module.
2. Connect the electrical connection of panel
3. Press fit the fascia cover
