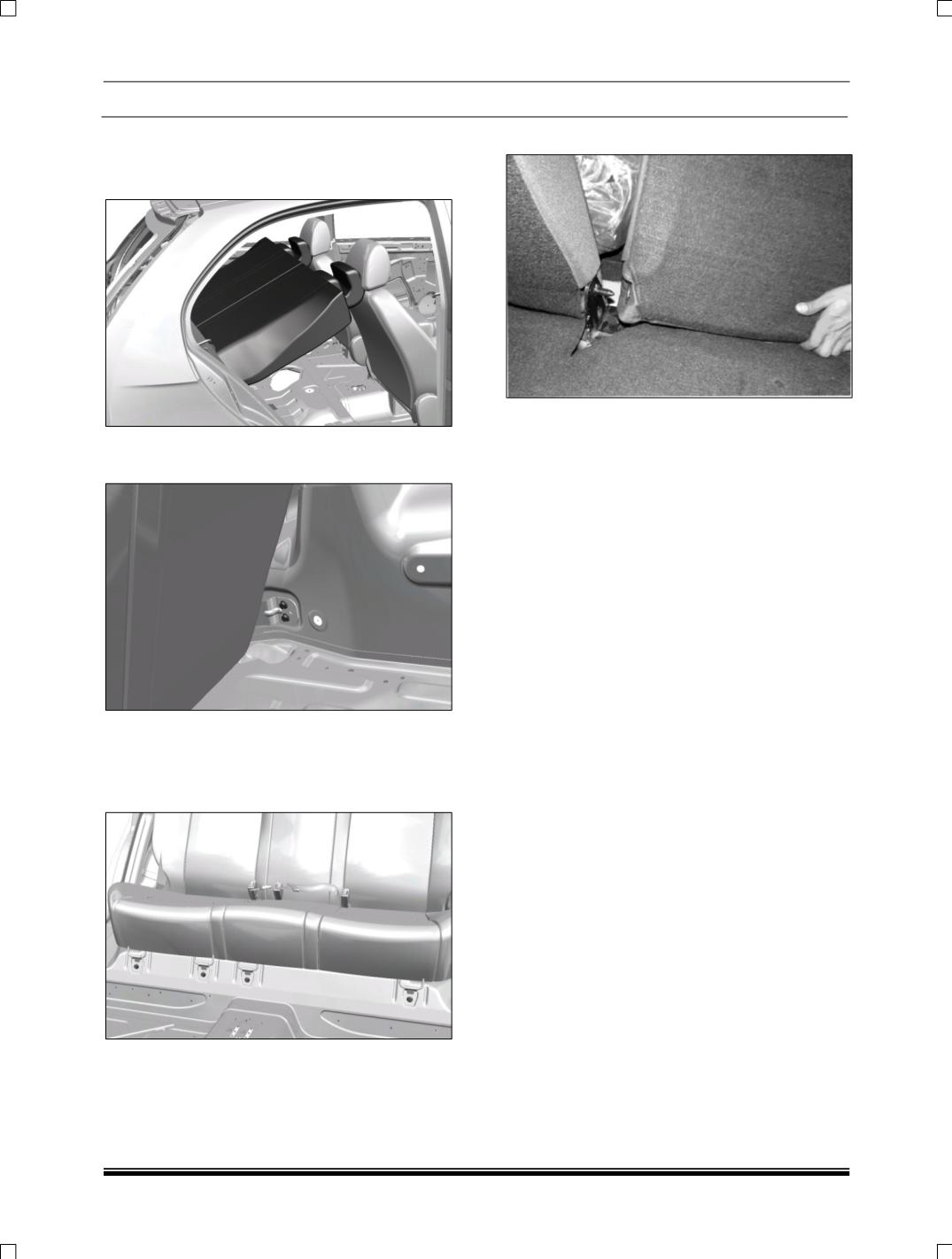

9.5.2 REMOVAL OF REAR SEAT: (60:40

SPLIT SEAT)

1. Lift Rear Seat back lock & Fold the seat back

2. Remove rear seat side bracket mounting

fasteners.

3. Remove the bolt (top) to open the cab of the

central mounting bracket and then to remove

the 60% and 40% rear seat back.

4. Remove Rear Seat Front Fasteners.

5. Remove Rear Seat.

REFITMENT OF REAR SEAT:

1. Locate Rear Seat Properly.

2. Locate the seat pin with central mounting

bracket and tighten the fastener.

3. Tighten rear seat side bracket mounting

fasteners.

4. Refit rear seat front fastener.

5. Push seat back lightly to lock in place.
