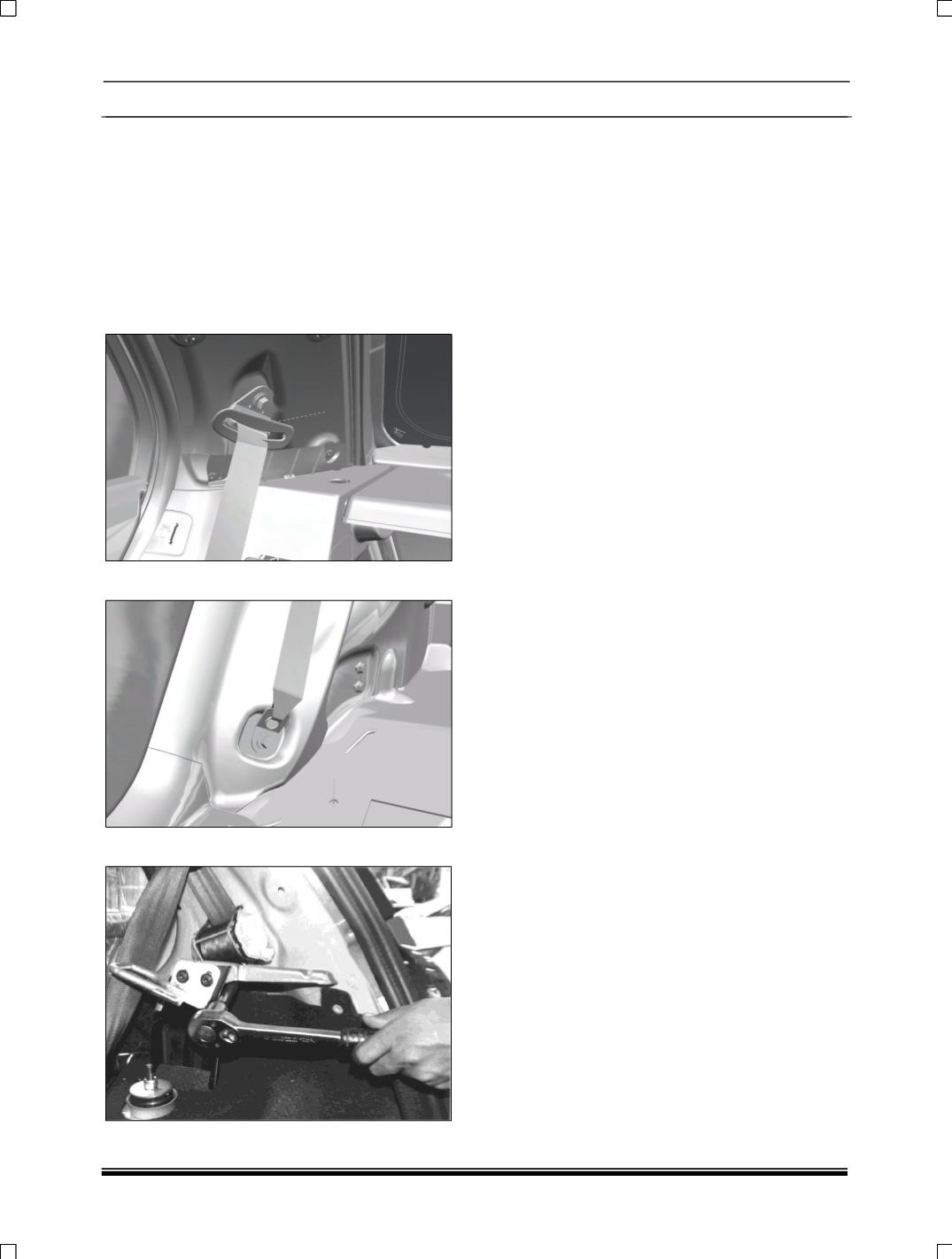

9.4.10 REMOVAL OF REAR SEAT BELT:

1. Remove parcel shelf: Refer “R+R Parcel

Shelf”.

2. Remove rear quarter trim: Refer “R+R Rear

Quarter.

3. Remove parcel shelf support trim: Refer “R+R

Parcel Shelf Support Trim”.

4. Remove rear seatbelt anchor mounting

fastener.

5. Remove rear seatbelt end mounting fastener:

6. Remove inertia reel mounting fastener.

REFITMENT OF REAR SEAT BELT:

1. Refit inertia reel mounting fastener.

2. Refit rear seat belt end mounting fastener.

3. Refit rear seatbelt anchor mounting fastener.

4. Refit parcel shelf support trim: Refer “R+R

Parcel Shelf Support Trim”

5. Refit rear quarter trim: Refer “R+R Rear

Quarter Trim”.

6. Refit parcel self.
