ZEST/BOLT

SUSPENSION



INSTALLATION

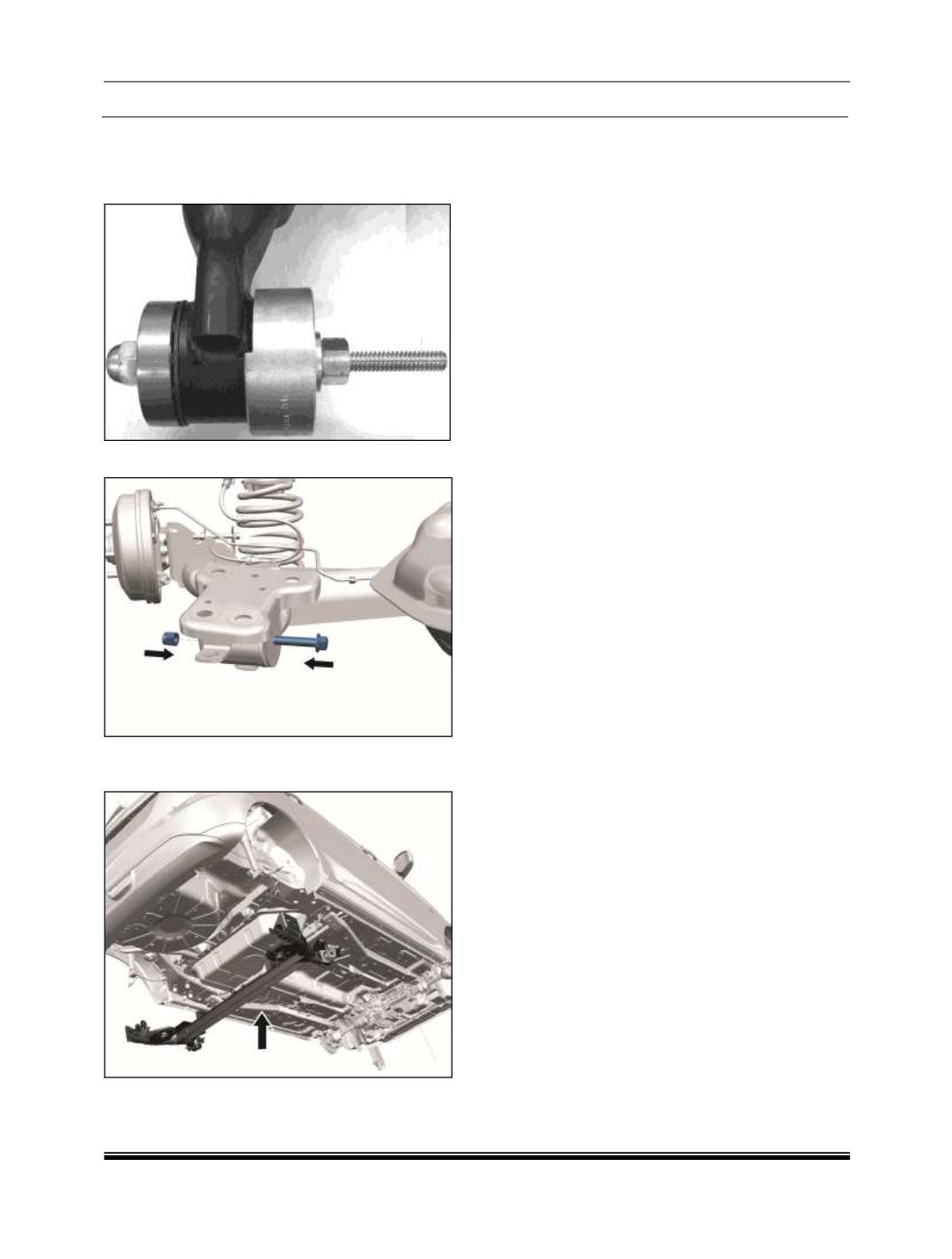

1. Install twist beam front pivot bush using special

tools as shown in below arrangement.

2. Tighten the cross bolt of the twist beam fig.

3. Lift and properly position the twist beam along

with bracket.

4. Tighten the four bolts of bracket on both sides.

5. Fix the brake lines and parking brake cable

mounting on the torsion beam.

6. Fix the back plate assembly along with brake

shoes and stub axle to the torsion beam.

7. Fit the brake drum.

8. Fix the shock absorber and coil spring to the

torsion beam. (Refer the refitment of shock

absorber and coil springs)

9. Top up the brake fluid and carry out the

bleeding of brakes. (Refer brakes).
