Automated Manual Transmission
5

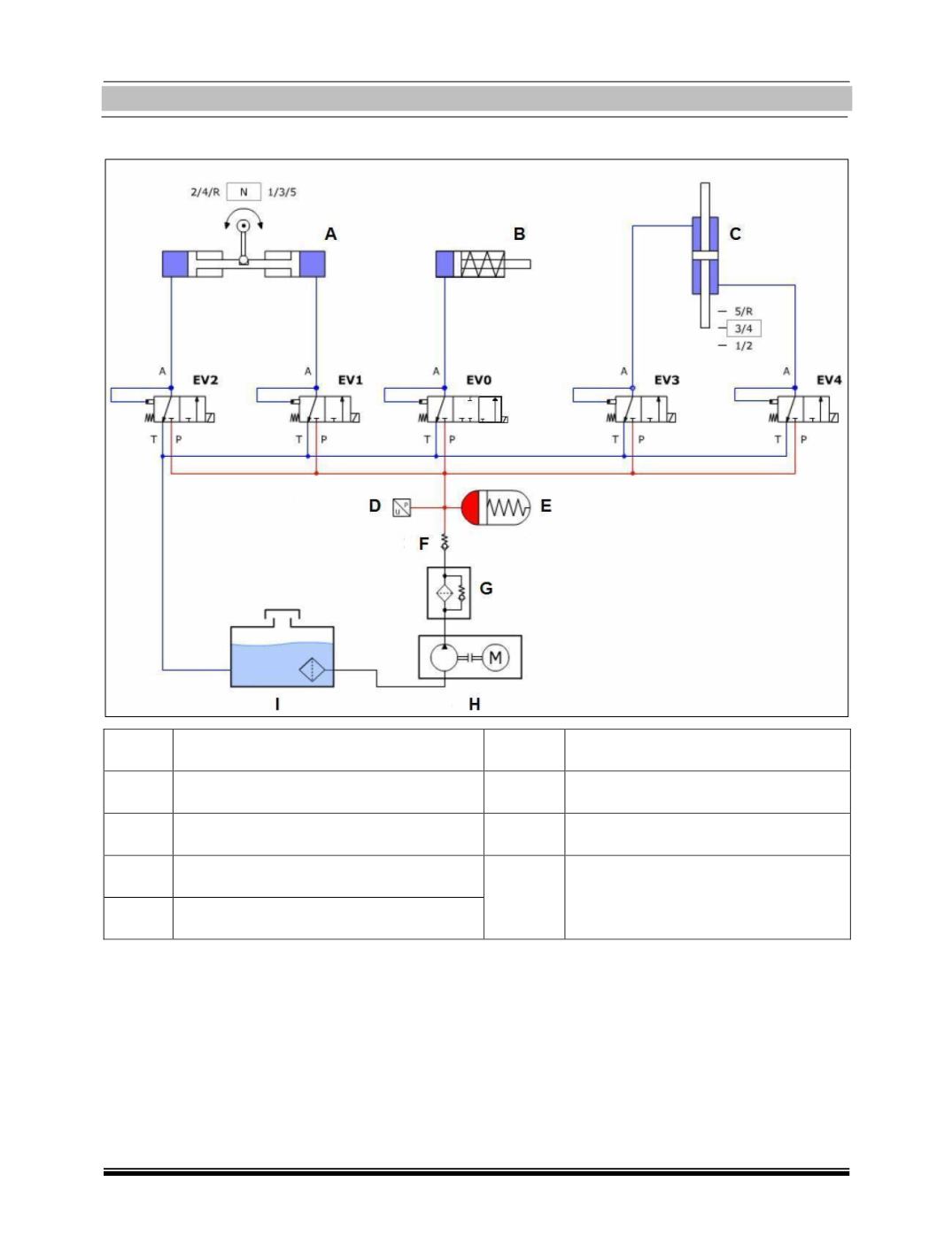

Hydraulic Diagram:
A
Engagement actuator
F
One way valve
B
CSC
G
Oil filter
C
Selection actuator
H
Electric pump
D
Supply pressure sensor
I
Reservoir
E
Pressure accumulator
|
|
