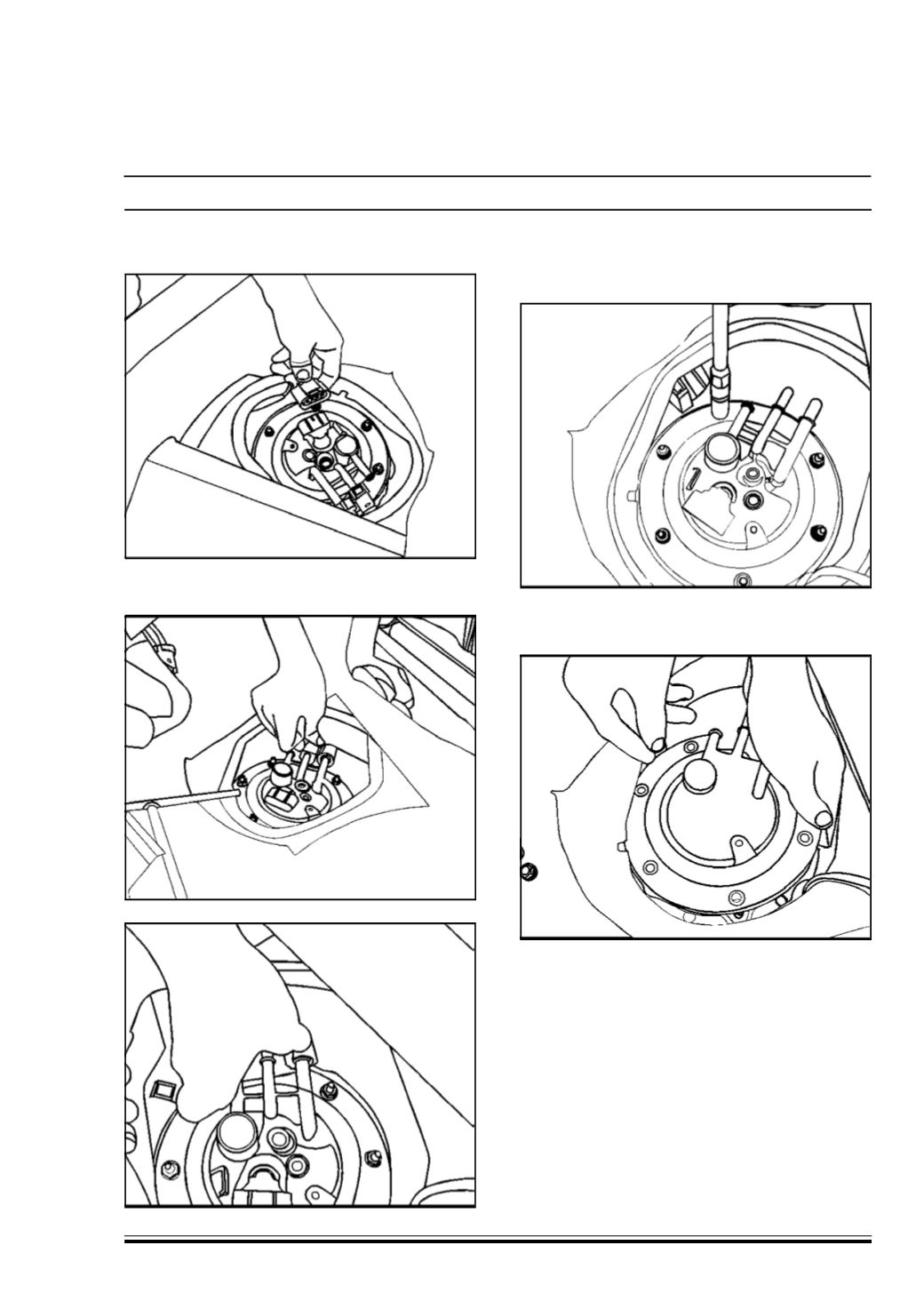

3. Unscrew fuel tank unit cover screw and remove
cover.
4. Disconnect Tank Unit Electrical Connector From
Tank Unit.
5. Disconnect tank unit inlet and outlet Quick Con-
nect Couplers:
6. Remove tank unit supporting bracket fasteners.
7. Tank Unit Supporting Bracket Removed: Photo
“Supporting Bkt. Removed.
8. Hold Tank Unit And tilt To Remove from tank: Photo
“Tank Unit Removed”.
