ENGINE 1.3L QUADRAJET (90PS)
74
3A.1.5.2.4 FUEL FEED SYSTEM
The Fuel feed system of QUADRAJET 90PS (LHD) is similar to that of QUADRAJET 90PS (RHD) in all respect
except the change in location of fuel filter and fuel feed lines.
In QUADRAJET 90ps, fuel filter is mounted on firewall.
Also the return line from the fuel injection pump and the injectors is directly connected to the fuel tank whereas in
QUADRAJET 75ps, it was through fuel filter.

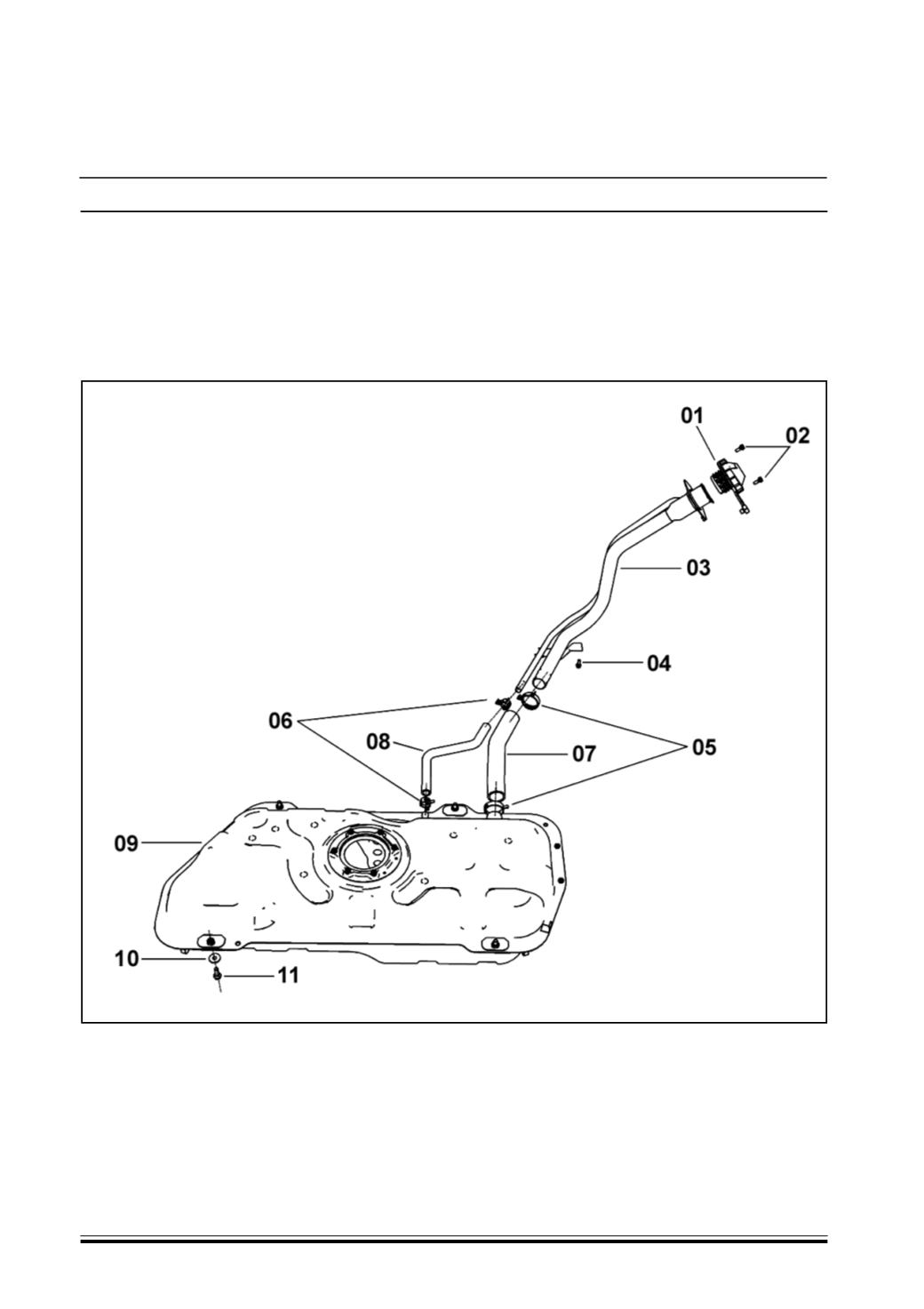

01 Fuel cap vented
02 Hex. screw
03 Assembly filler neck
04 Hex. bolt
05 Spring band clamp
06 Spring band clamp
07 Fuel filler hose
08 Breather hose
09 Assembly fuel tank welded (44 lit with baffle)
10 Washer
11 Hex. bolt
