Revotron 1.2T

97

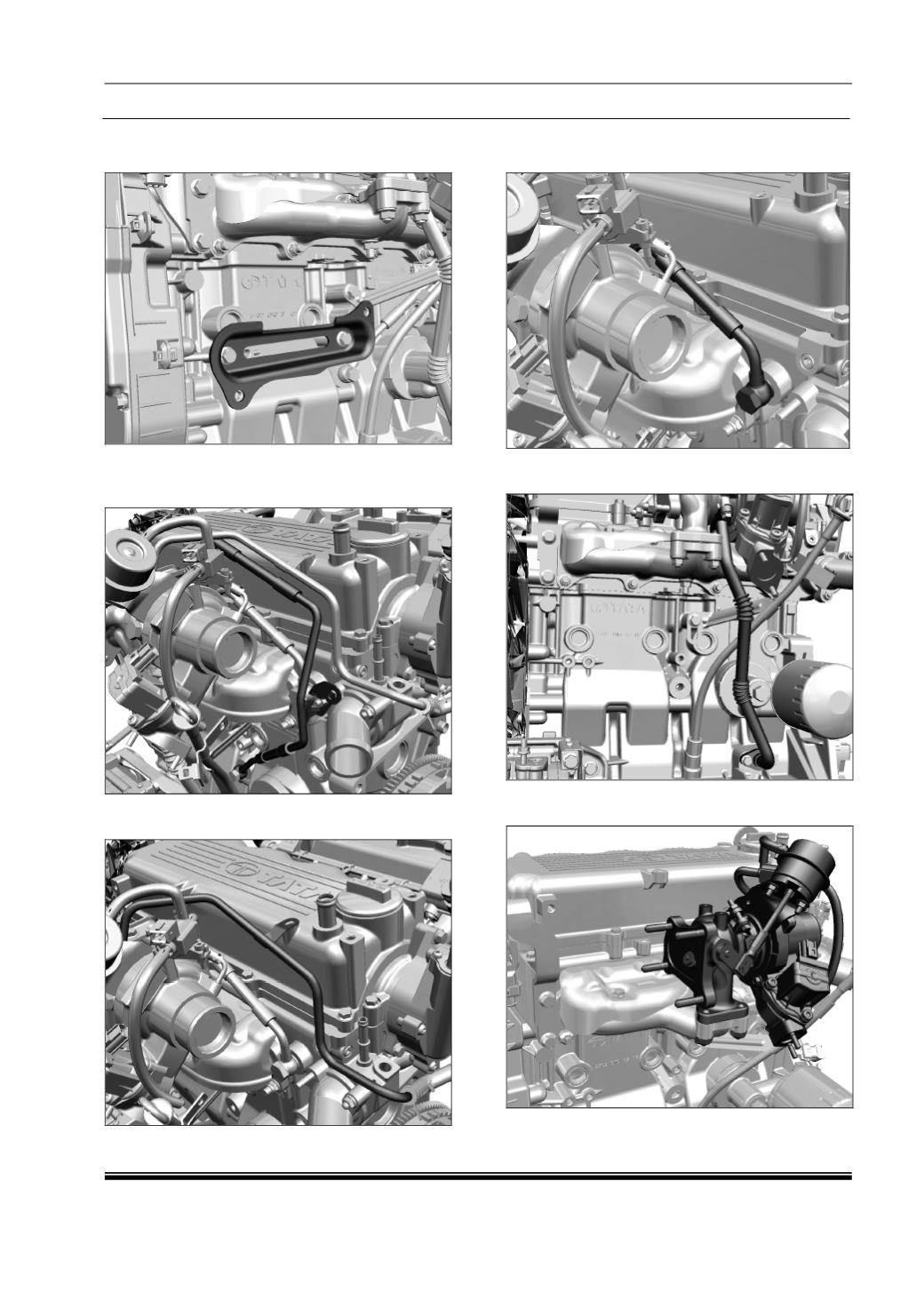

6. Remove the CCC Support bracket from the

engine block.

7. Remove Tube assembly (Turbocharger Oil

Inlet) which connects engine block and

turbocharger.

8. Remove Tube assembly (Water Outlet) from

turbocharger.

9. Remove Tube assembly (Turbocharger

Coolant Inlet)

10. Remove Tube assembly (Turbocharger Oil

Return).

11. Remove the Turbocharger from the Exhaust

Manifold along with Gasket.
