Revotron 1.2T

96

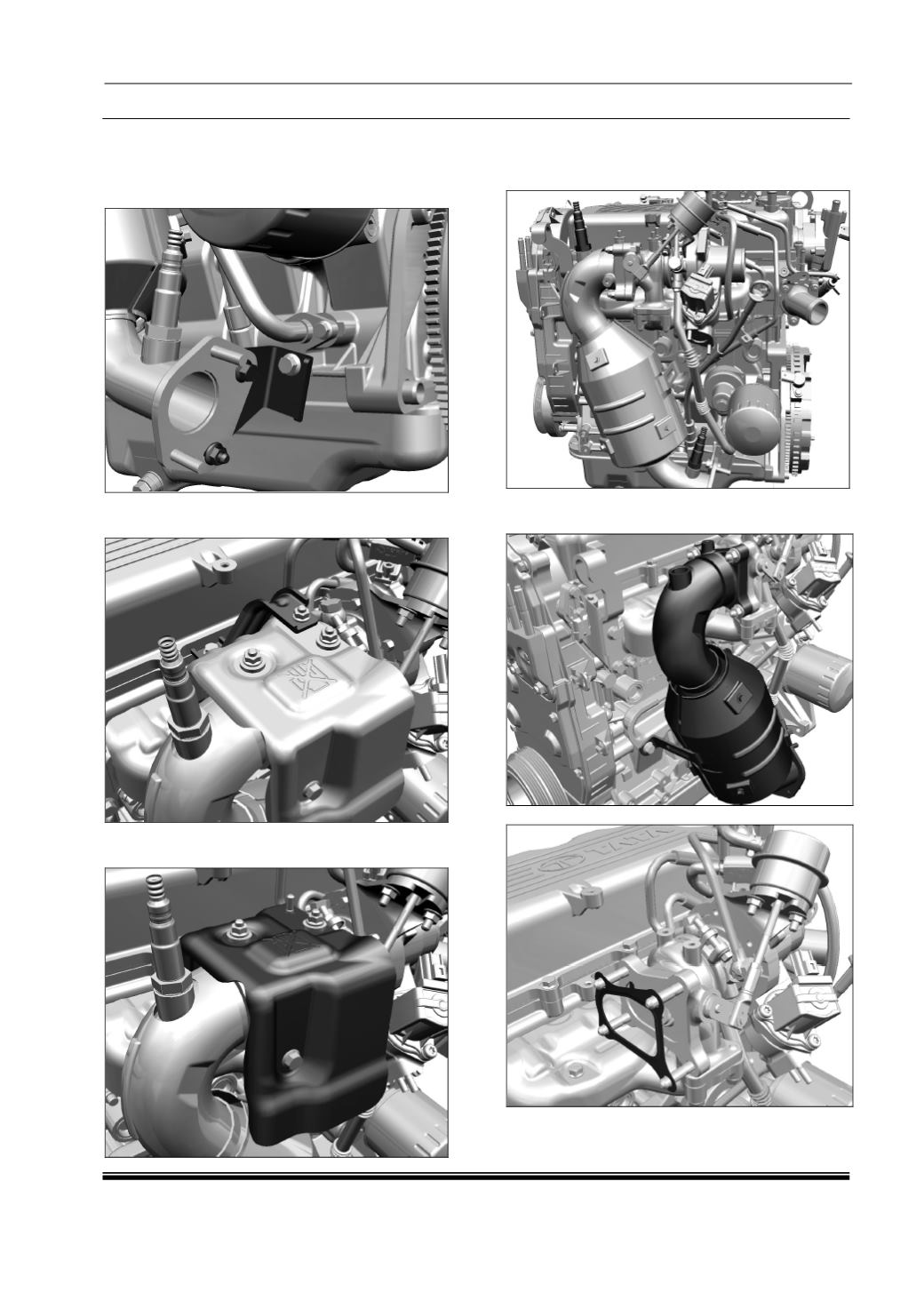

ii. Removal of Exhaust Manifold

1. Remove the Rear Support Bracket for the

Closed Coupled Catalytic Convertor (CCC)

near oil sump.

2. Remove the CCC support bracket near the

Cylinder Head cover.

3. Remove the Turbo Heat Shield mounted on

support bracket.

4. Remove the Lambda Sensor Upper and

Lower from CCC.

5. Remove Closed Coupled Catalytic Convertor

and Gasket.
