Revotron 1.2T
56
vii.

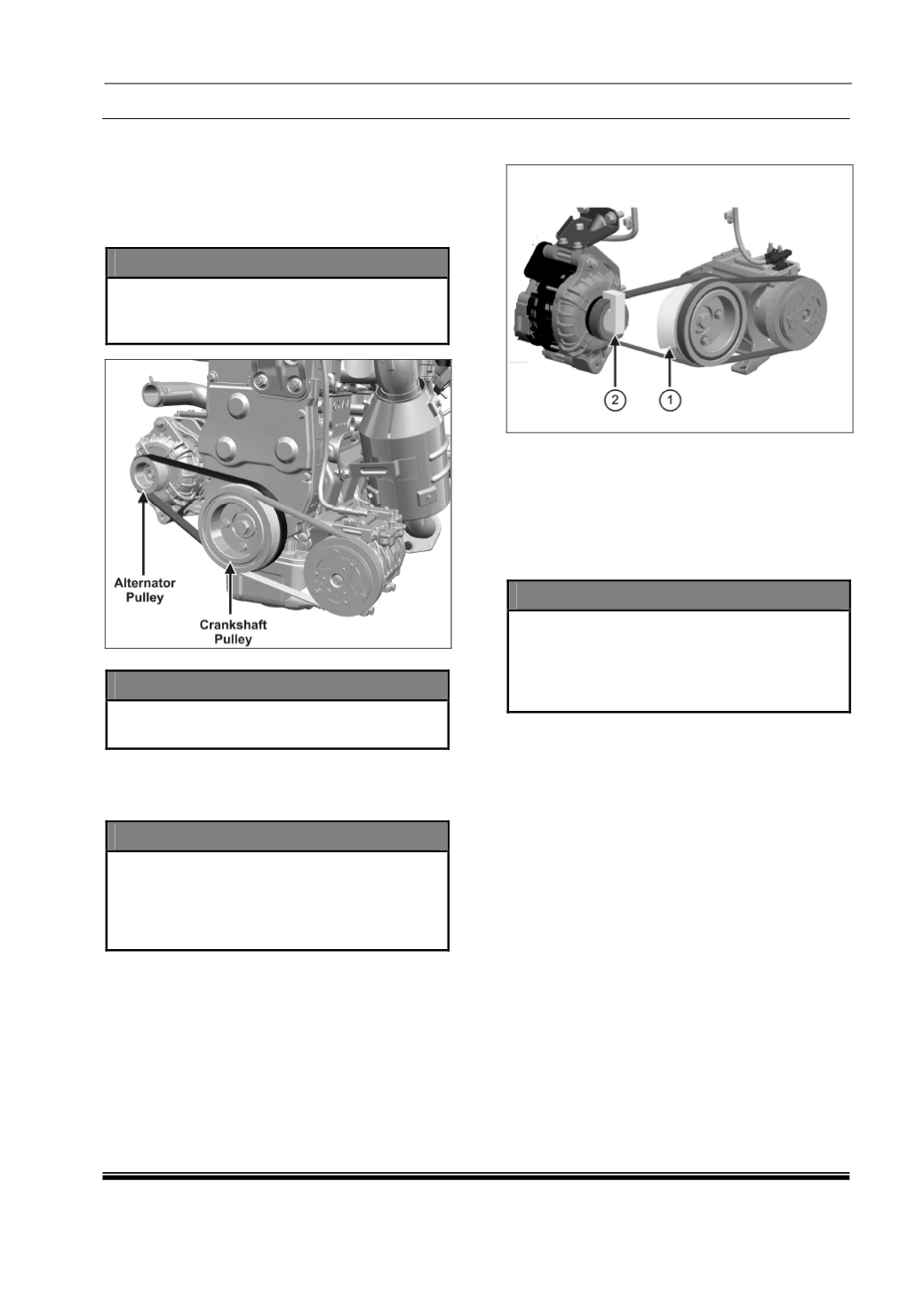

Alternator Belt Replacement :
The stretch belt used in this vehicle is
multi ribbed belt. This belt is pre-tensioned
over Alternator and crank shaft pulley and
therefore do not require the tensioner as this
is capable of efficient power transmission.
CAUTION
•
The stretch belt is not interchangeable and
should not be interchanged with normal V-
ribbed belts.
NOTE
•
It is mandatory to remove AC Compressor
belt before removal of Alternator Belt
Removal :
1. Remove the stretch belt from vehicle using
stretch belt removal tool (1).
SPECIAL TOOL
•
Stretch Belt Removal Tool -
5427 5890 06 02
•
Stretch Belt Fitment Tool -
5427 5890 06 01
Installation :
1. Install the new stretch belt on Alternator
pulley.
2. Align the belt with the crank shaft pulley and
hold the belt with the Stretch belt fitment tool
(2) and rotate the crank shaft pulley
clockwise.
CAUTION
•
Ensure that the tool is correctly located
during the belt fitment process. Make sure
that while rotating the crank shaft pulley
the belt should not slip away from AC
Compressor pulley.
With the help of clevis meter measure the
proper belt tension.
