Revotron 1.2T
55
vi.

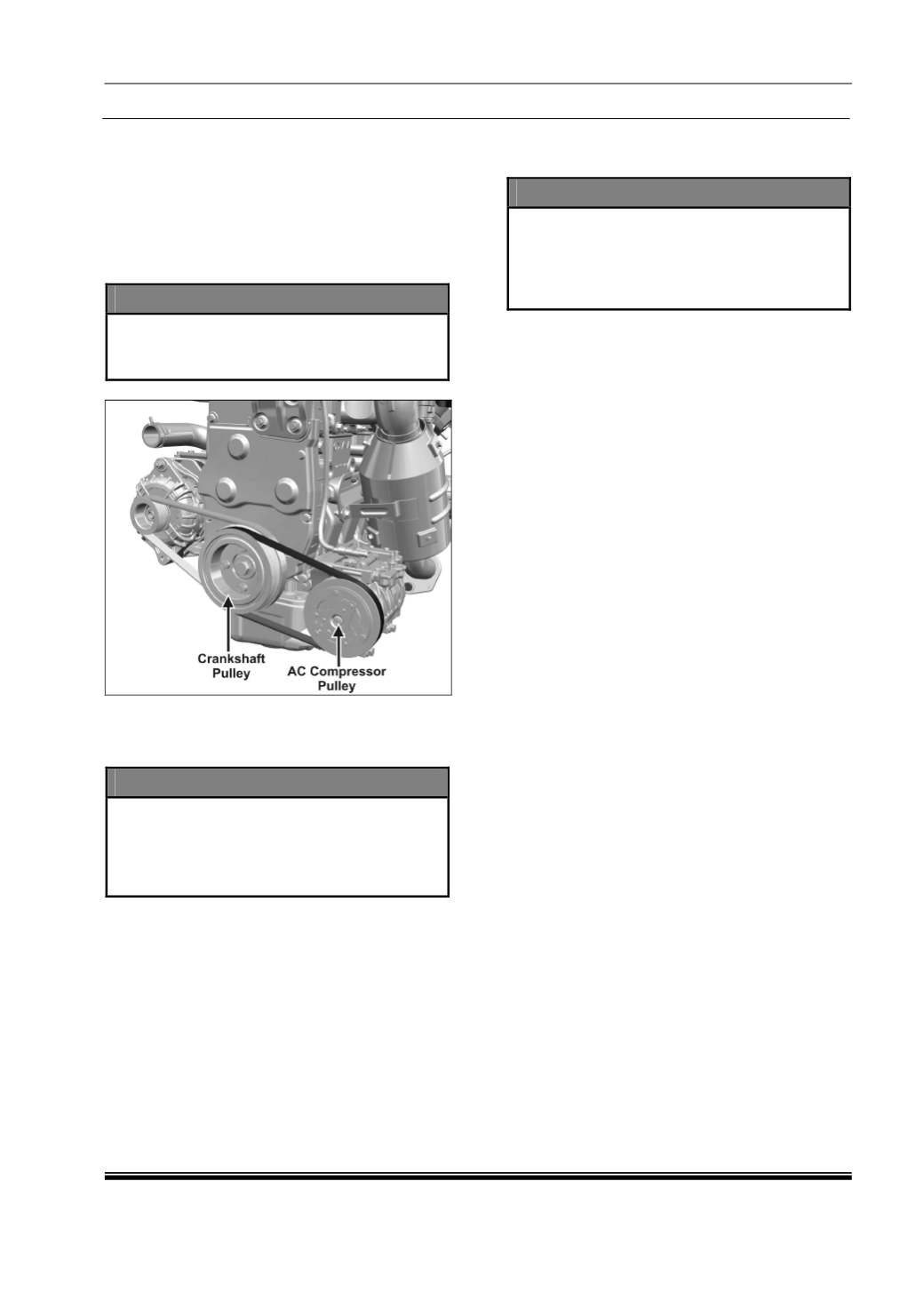

Air Conditioner Compressor Belt
Replacement :
The stretch belt used in this vehicle is
multi ribbed belt. This belt is pre-tensioned
over Air conditioner compressor and crank
shaft pulley and therefore do not require the
tensioner as this is capable of efficient power
transmission.
CAUTION
•
The stretch belt is not interchangeable and
should not be interchanged with normal V-
ribbed belts.
Removal :
1. Remove the stretch belt from vehicle using
stretch belt removal tool (1).
SPECIAL TOOL
•
Stretch Belt Removal Tool -
2702 5890 06 23
•
Stretch Belt Fitment Tool -
2702 5890 06 22
Installation :
1. Install the new stretch belt on AC Compressor
pulley
2. Align the belt with the crank shaft pulley and
hold the belt with the Stretch belt fitment tool
(2) and rotate the crank shaft pulley
clockwise.
CAUTION
•
Ensure that the tool is correctly located
during the belt fitment process. Make sure
that while rotating the crank shaft pulley
the belt should not slip away from AC
Compressor pulley.
With the help of clevis meter measure the
proper belt tension.
