AIR CONDITIONING
53

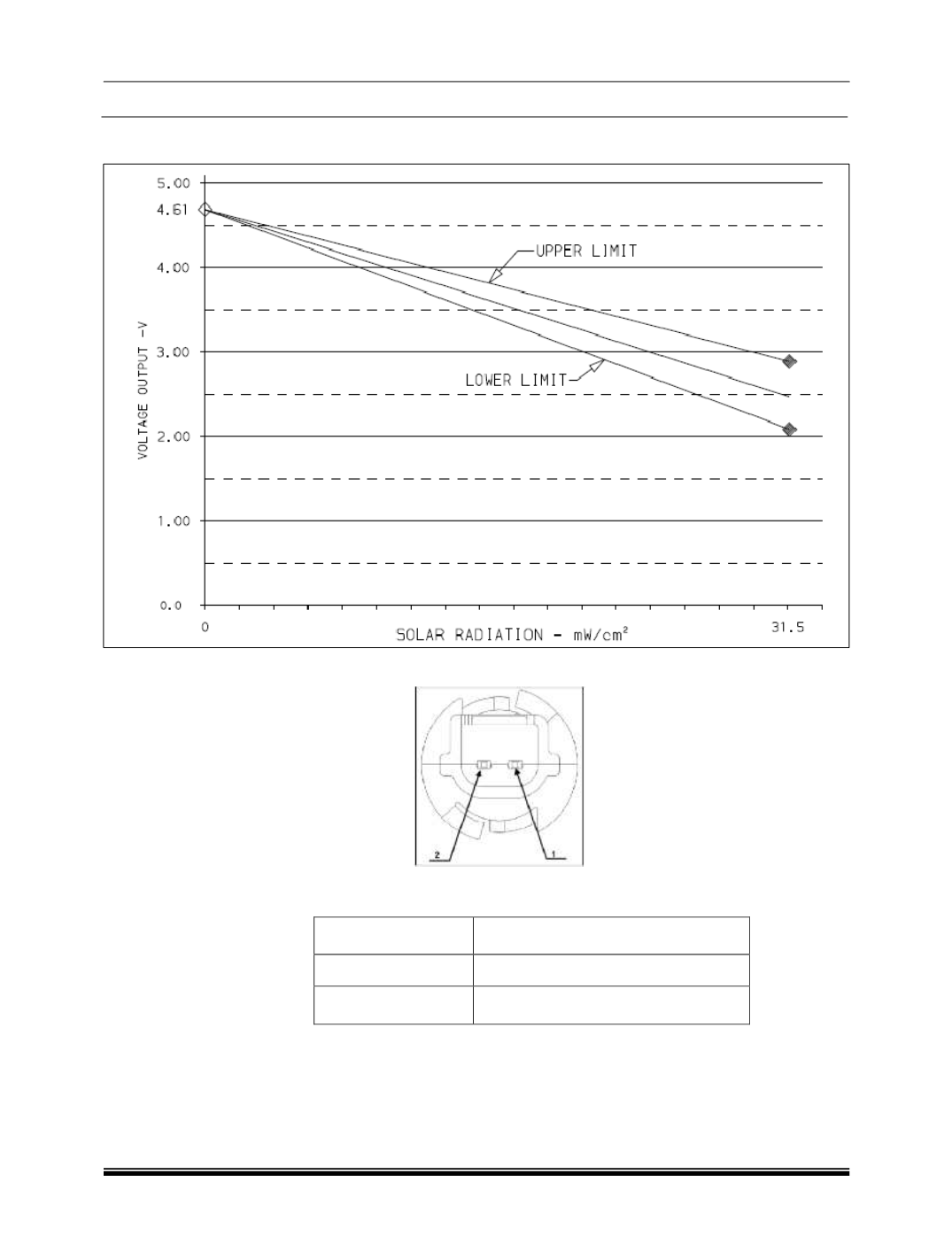

The plotted graph should approximately match with following graph.
CONNECTOR DETAILS
PINOUT DETAILS
PIN NO
DESCRIPTION
1
Solar sensor Input to control panel
2
Analog gnd
|
|
