ELECTRICAL
78

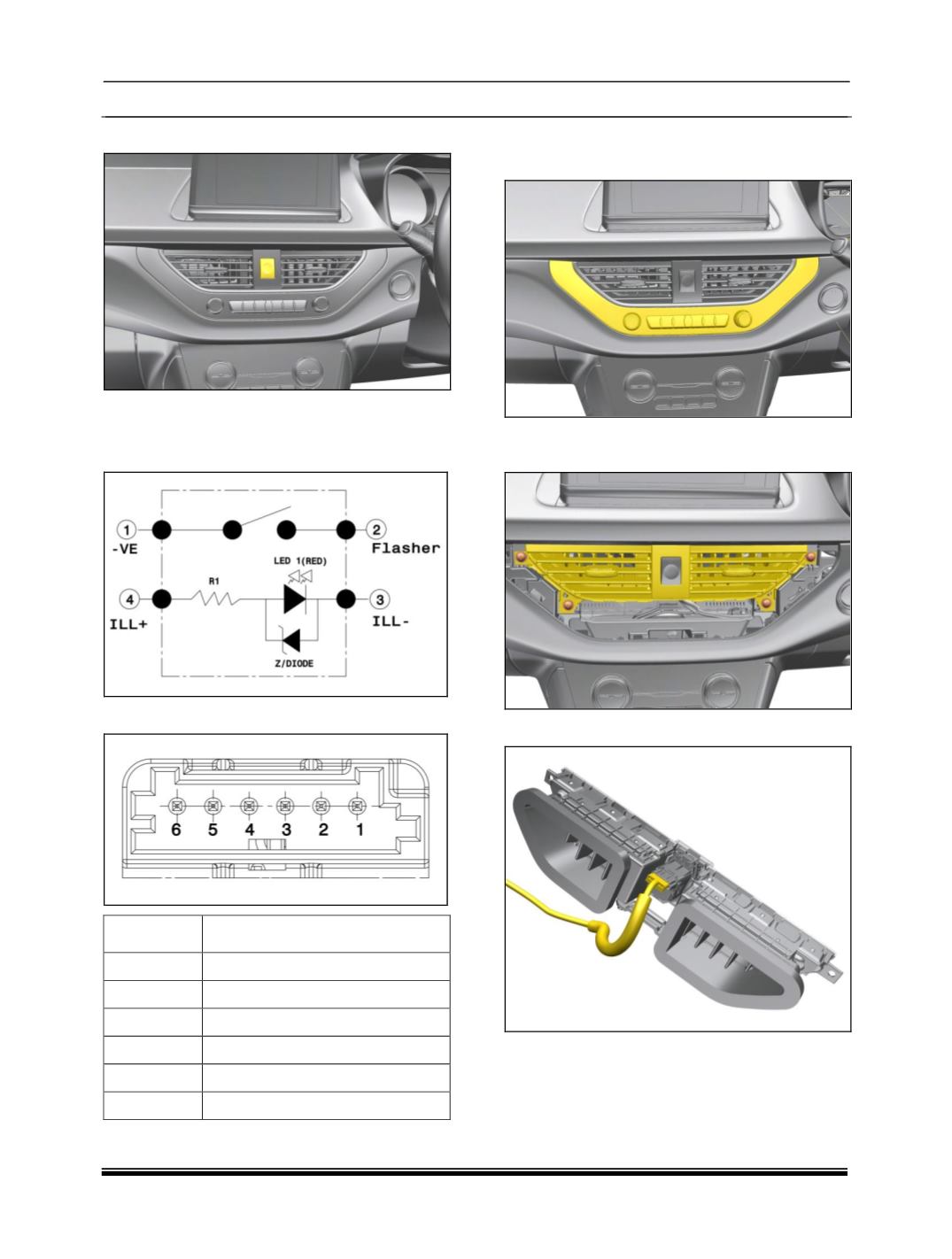

1.16 HAZARD SWITCH
When the switch is pressed, hazard waning
indicators start flashing.
CIRCUIT DETAILS
PINOUT DETAILS
PIN
DESCRIPTION
1
-VE
2
FLASHER
3
ILLUMINATION -
4
ILLUMINATION +
5
NC
6
NC
REMOVAL
1. Carefully pull out air vent. Cover
2. Loosen and remove the four mounting screws
of air vent
3. Disconnect the electrical connection.
