978 / 1265
ELECTRICAL
74

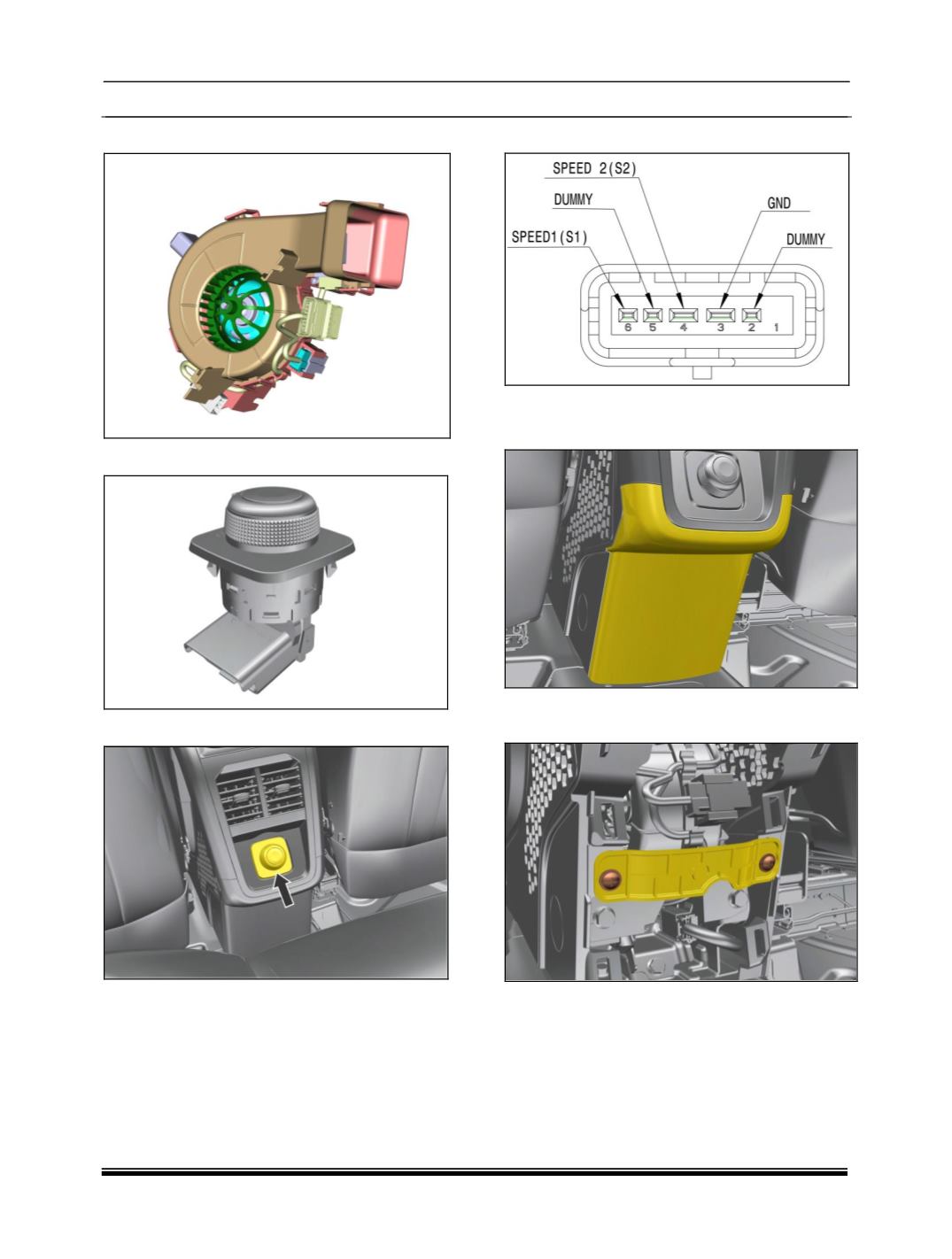

A. REAR BLOWER (IF APPLICABLE)
REAR BLOWER SWITCH
LOCATION
PIN OUT DETAILS
REMOVAL REAR BLOWER ASSY
1. Pull out the rear console cover assembly.
2. Remove tap screw & take out console Frame
Bridge.
|
|
