ELECTRICAL
51

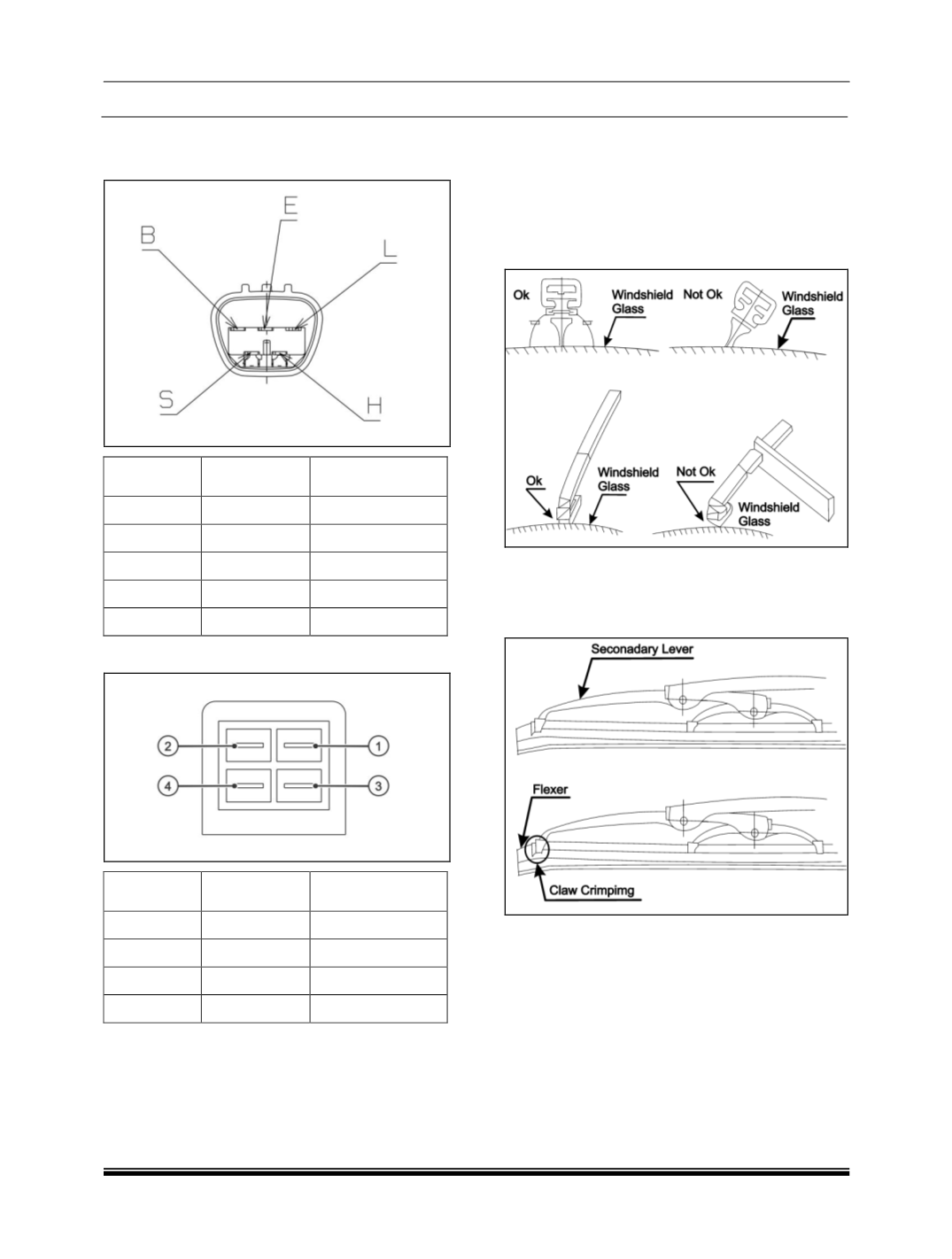

PINOUT DETAIL
FRONT WIPER
PIN
SYMBOL
FUNCTION
1
Hi
High
2
Lo
Low
3
B
Battery
4
P
Parking
5
E
Earth
REAR WIPER
PIN
COLOR
FUNCTION
1
Brown
-ve
2
Pink/Blue
Motor
3
Blue/White
+ve
4
Blue/Green
Parking Switch
1.9.3 WIPER AND WIPER CARE
1. Wiper blade attack angle on wind shield glass
should be 90º i.e. perpendicular. Remove
wiper blade and rest wiper arm on wind shield
glass in the centre position. Check the gap
between arm strip and glass. Adjust by twisting
wiper arm.
2. Straighten the secondary lever & yoke, if found
twisted. Slide the flexer inside the rubber, if
found protruding out and crimp the claw to
avoid it from coming out again.
