Normal operating Mode

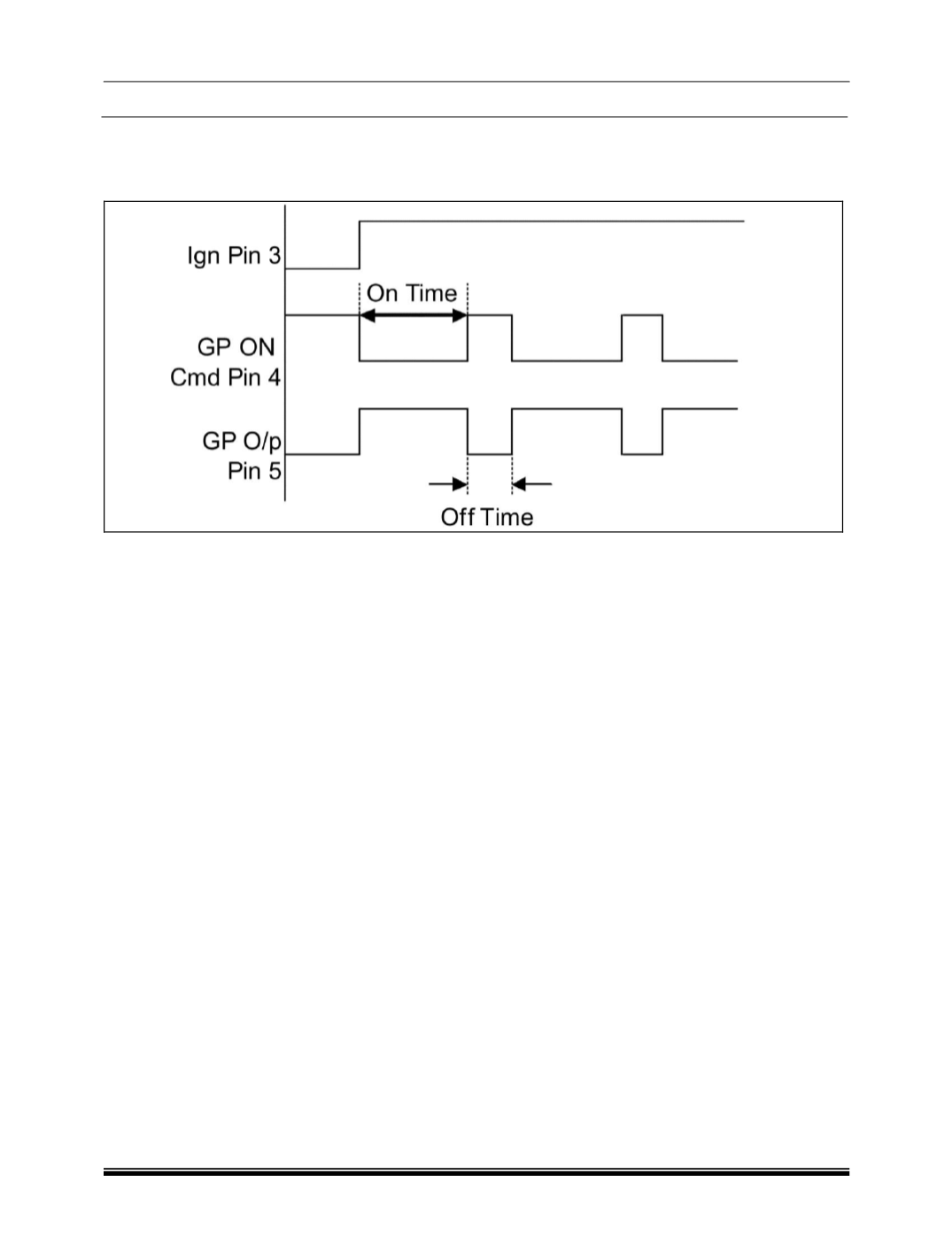

The diagram show the proceeding of the signals in the function of time during the phase of pre or post
heating during normal functioning condition.
Application
The device driven by ECU system with a diagnosis protocol EOBD (European On Board Diagnose) drives &
checks the operating state of each glow plug during pre & post heating phases of diesel engine made by 3
cylinders. The operating mode is controlled by wiring harness through command & feedback. A protection for
high current & overload voltage is integrated & it’s supplied by the control system.
