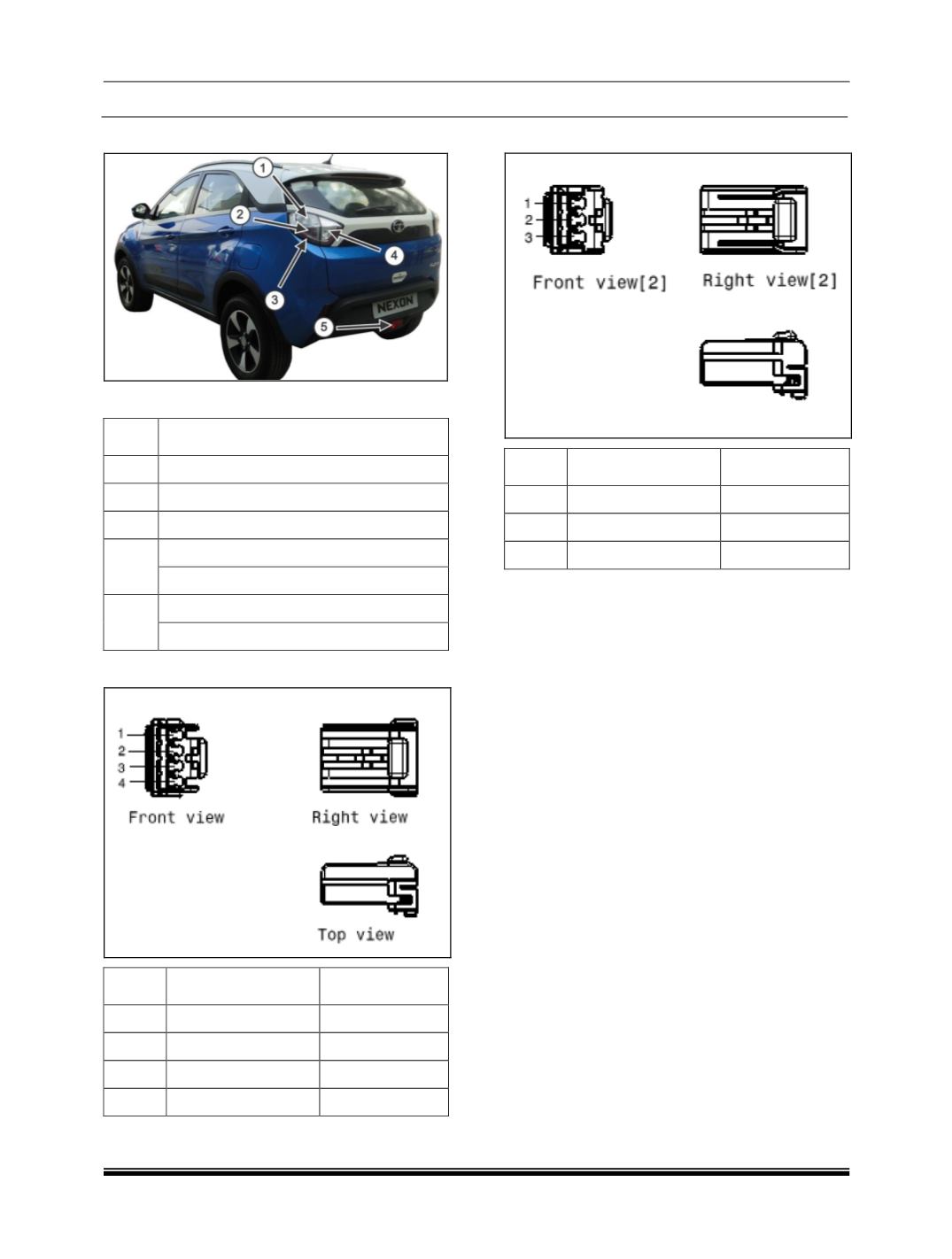

1.7.8 TAIL LAMP
Tail lamp consists of the following bulbs:
NO.
DESCRIPTION
1
Turn indicators
2
Stop light
3
Tail/Position
4
Reverse Lamp
(For High Version)
Dummy
(For Low Version)
5
Rear Fog Lamp
(For High Version)
Reverse Lamp
(For Mid&Low Version)
BSO SIDE TAIL LAMP
PIN
DESCRIPTION
COLOUR
1
Turn
Orange
2
Stop
Red
3
Tail/Position
Green
4
Ground
Grey
TRUNK TAIL LAMP
PIN
DESCRIPTION
COLOUR
1
Tail/Position
Green
2
Reverse
Yellow
3
Ground
Grey
