ELECTRICAL
33

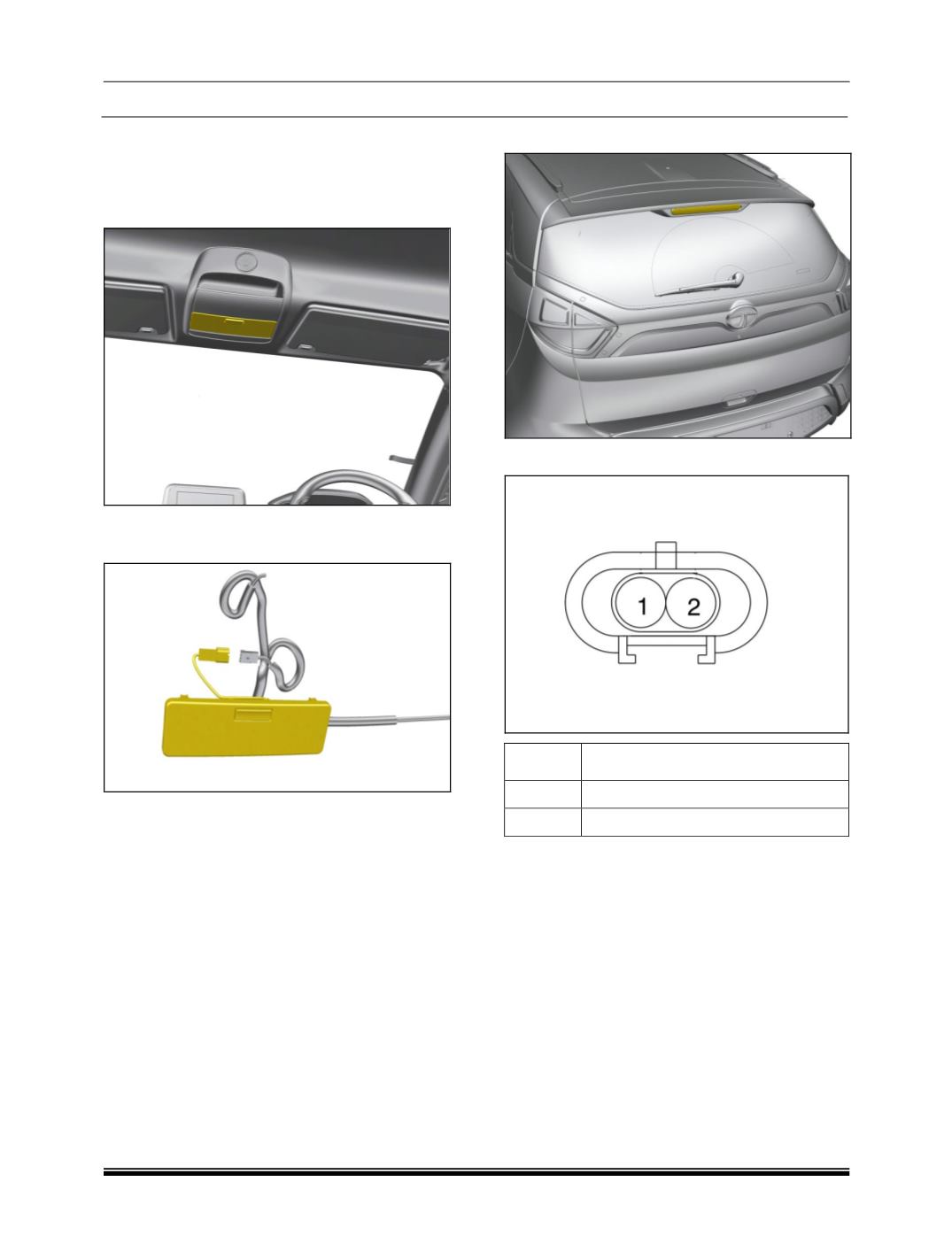

REMOVAL AND REFITMENT OF ROOF LAMP
REMOVAL
1. Gently pry out the roof lamp assembly from the
bezel roof lamp by inserting wedge.
2. Disconnect the electrical connector form the
assembly.
REFITMENT:
Carry out the fitment process in the reverse order
of the removal.
1.7.7 HIGH MOUNTED STOP LAMP
PINOUT DETAILS
PIN
DESCRIPTION
1
+ ve
2
Vgnd
