896 / 1265
BODY
55

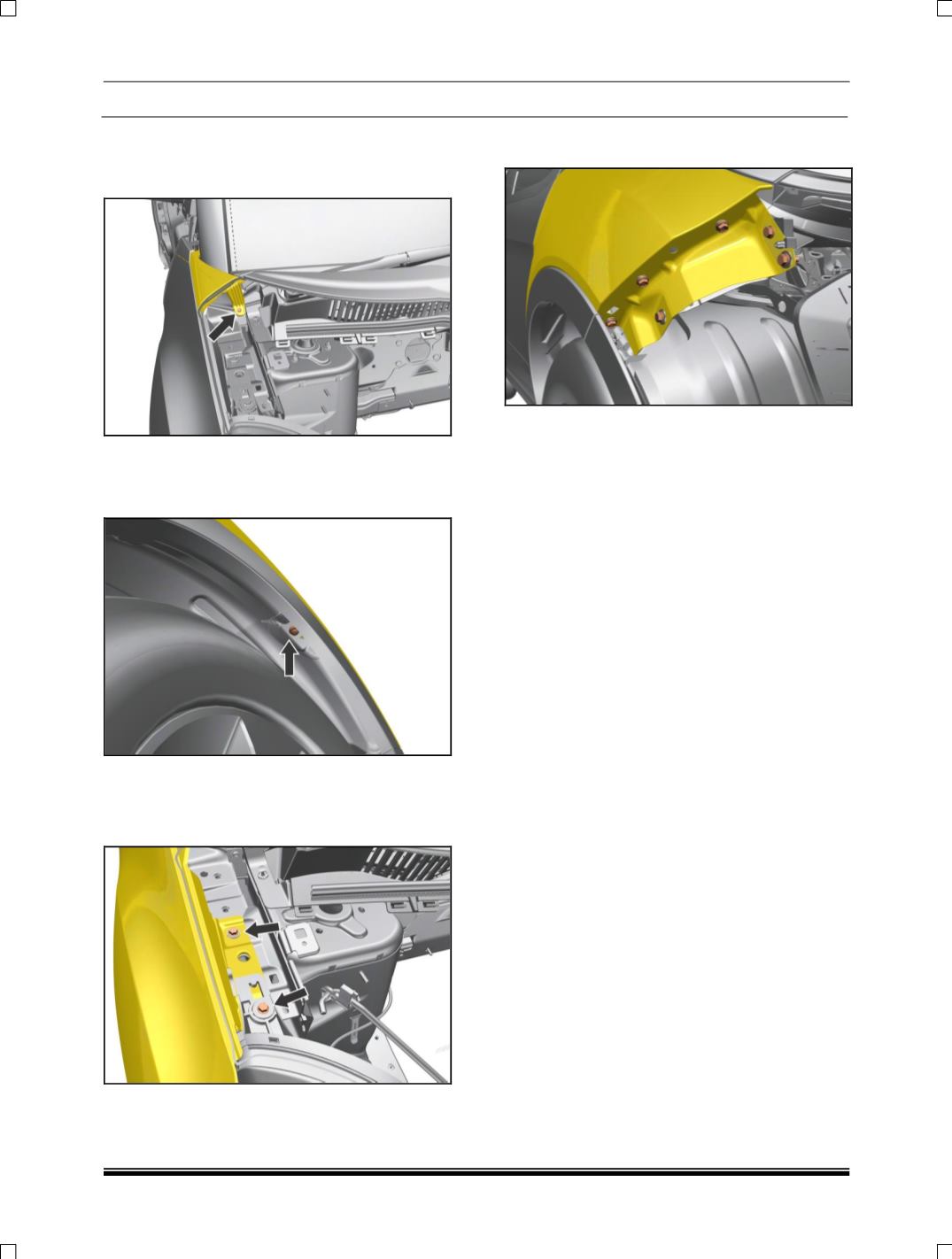

5. Open the Bonnet.
6. Pull out Side Plenum Cover Remove top
mounting screw.
7. Remove front wheel arch liner. (For procedure
refer front wheel arch liner removal process.)
8. Remove lower mounting screw.
9. Remove front Bumper. (For procedure refer
Front Bumper removal process.)
10.Loosen and remove head lamp mounting
screws.
11.Loosen and remove top mounting screw as
shown in figure.
12.Remove front mounting screw as shown in
figure.
13.Remove front fender assembly.
FITMENT
For fitment follow reverse procedure of removal.
