BODY

54



REAR WHEEL ARCH REAR

REMOVAL

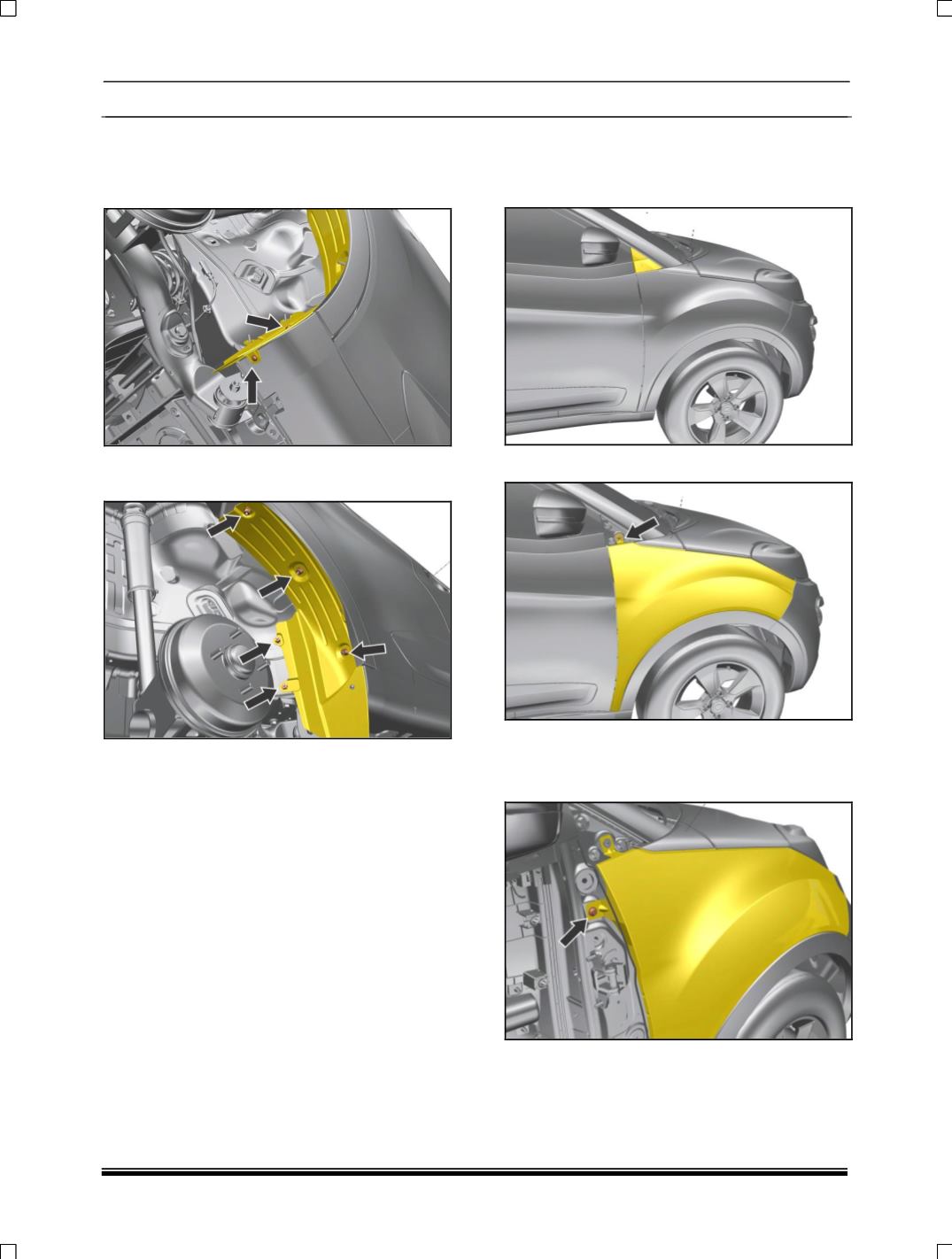

1. Remove Rear Bumper mounting screw.

2. Remove three Push on Nuts located inside

rear wheel arch.

3. Remove Rear wheel arch rear.

FITMENT

For fitment follow reverse procedure of removal.

1.4.41. FRONT FENDER

REMOVAL

1. Pull out ORVM corner piece.

2. Remove mounting screw as shown in figure.

3. Remove front door. (For procedure refer front

door removal removal)

4. Remove fender mounting bracket bolt.
