SUSPENSION

B. Lower arm Rear pivot bush

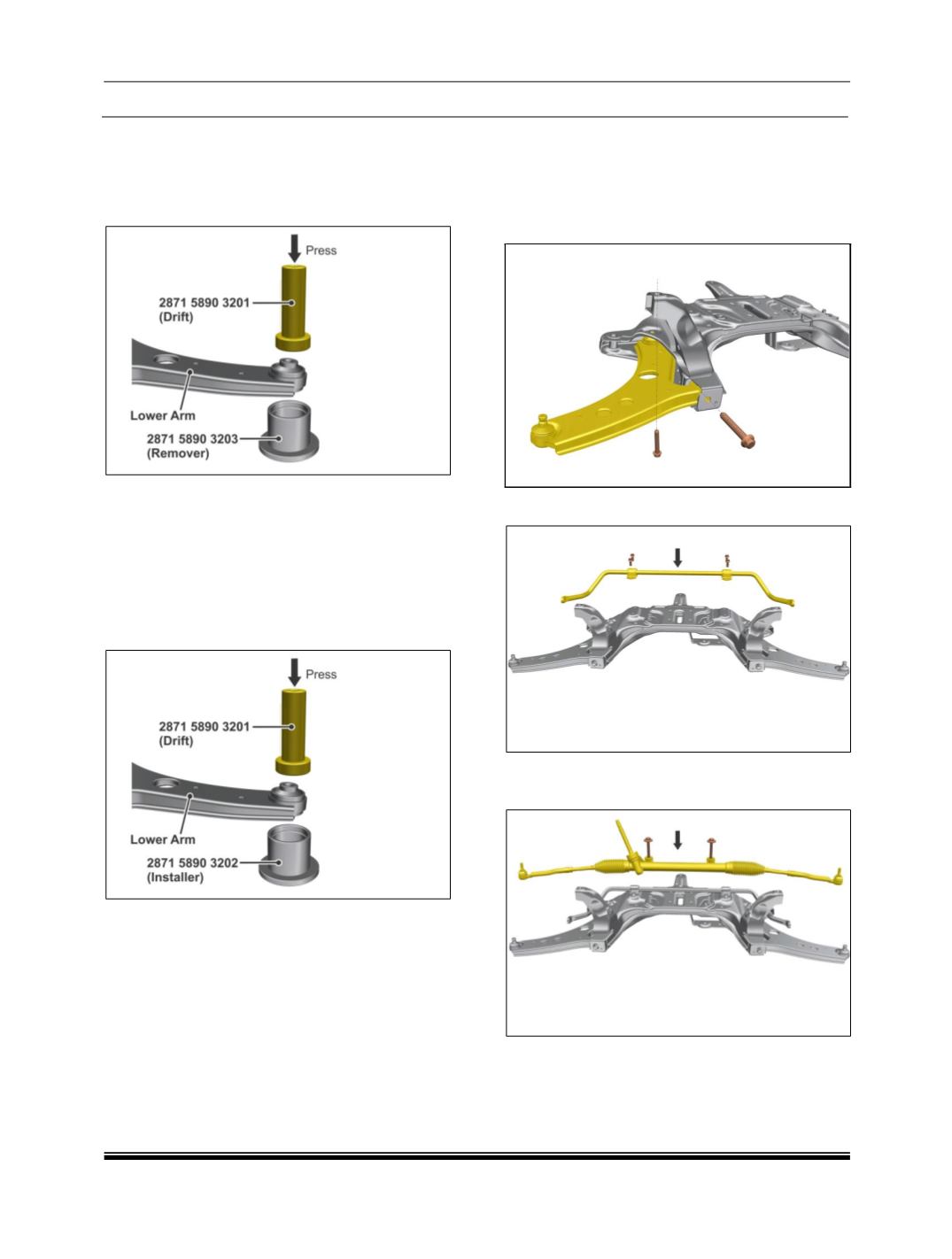

Removal:

. Remove rear pivot bush using special tools as

shown in below arrangement.

NOTE:

Apply soap and water to the bush, the

inner

surface of the tool and the bore of assembly

lower link before installation.

Installation:

2. Install rear pivot bush using special tools as

shown in below arrangement.



INSTALLATION OF SUBFRAME ASSEMBLY

1. Assemble the ball joint assembly to the lower

arm.

2. Position the lower arm to the Subframe and

tighten its front and rear pivot bush bolts.

3. Assemble anti roll bar to Subframe

4. Assemble the steering rack assembly to

Subframe.
