DRIVESHAFT
10

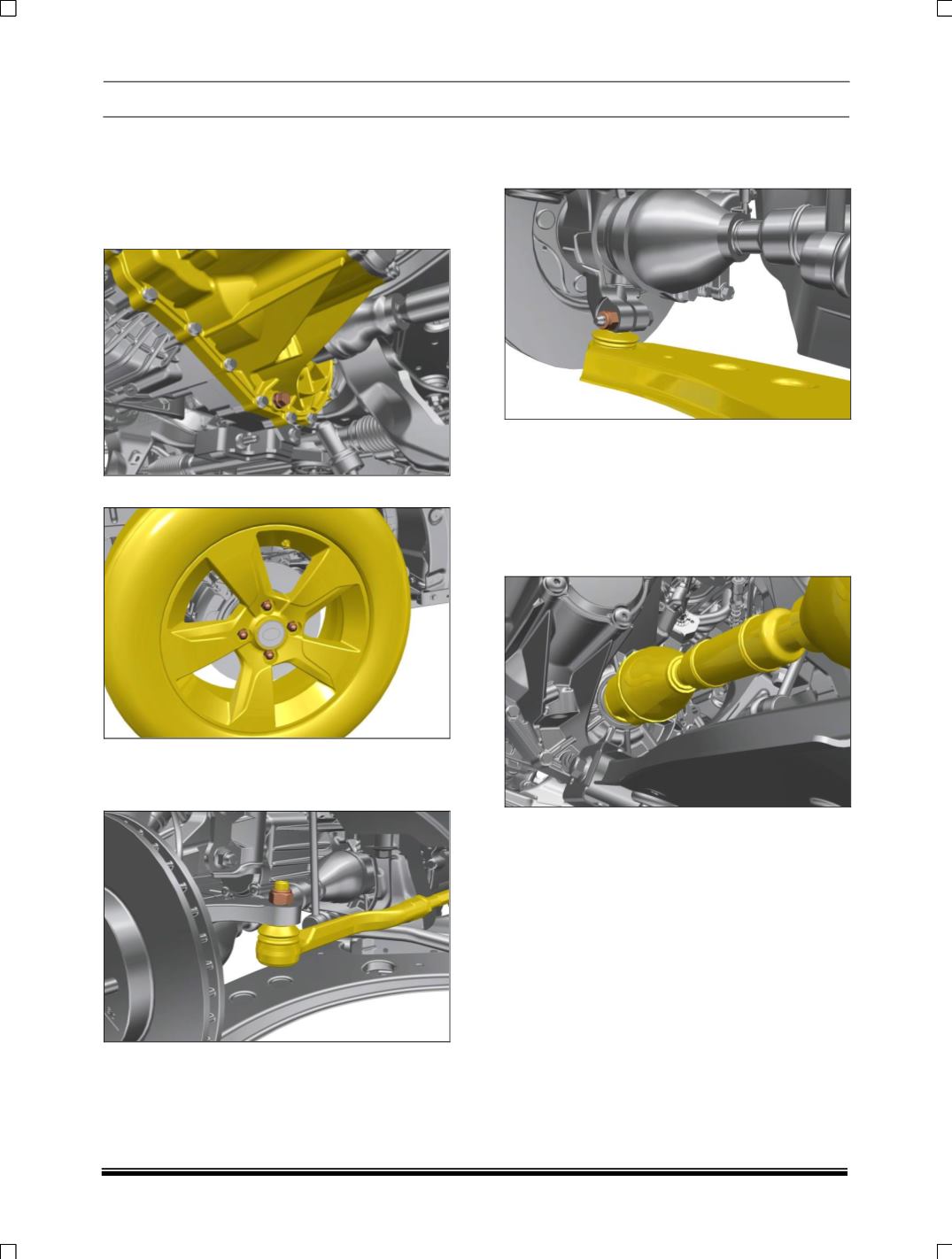

1.6. ON VEHICLE PROCEDURE
A. DRIVE SHAFT (LH / RH) REMOVAL
1. Lift the vehicle on using two post lift and
remove the front wheels.
2. Drain the Transaxle oil through Drain Plug.
3. Remove wheel nut & take out wheel.
4. Remove ball joint (steering rack) from steering
knuckle from RH & LH sides using tool part
no. 2702 5890 4602.(Refer Steering Section)
5. Remove stub axle ball joint Mtg. & Remove
Lower Control Arm (LCA) using tool part no.
2702 5890 4602.(Refer suspension section)
6. Swing out drive shafts from transaxle and
place it suitably alongside.
Do not pull drive shaft excessively as the
plunge joint will come out of housing and
damage the boot Pry. Plunge joint housing for
taking out joint out of splines. Do not place the
CV drive shaft on rough / uncleaned surfaces.
This might damage the drive shaft boot.
FITMENT
For fitment, follow reverse procedure of removal.
