620 / 1265
CLUTCH AMT
7

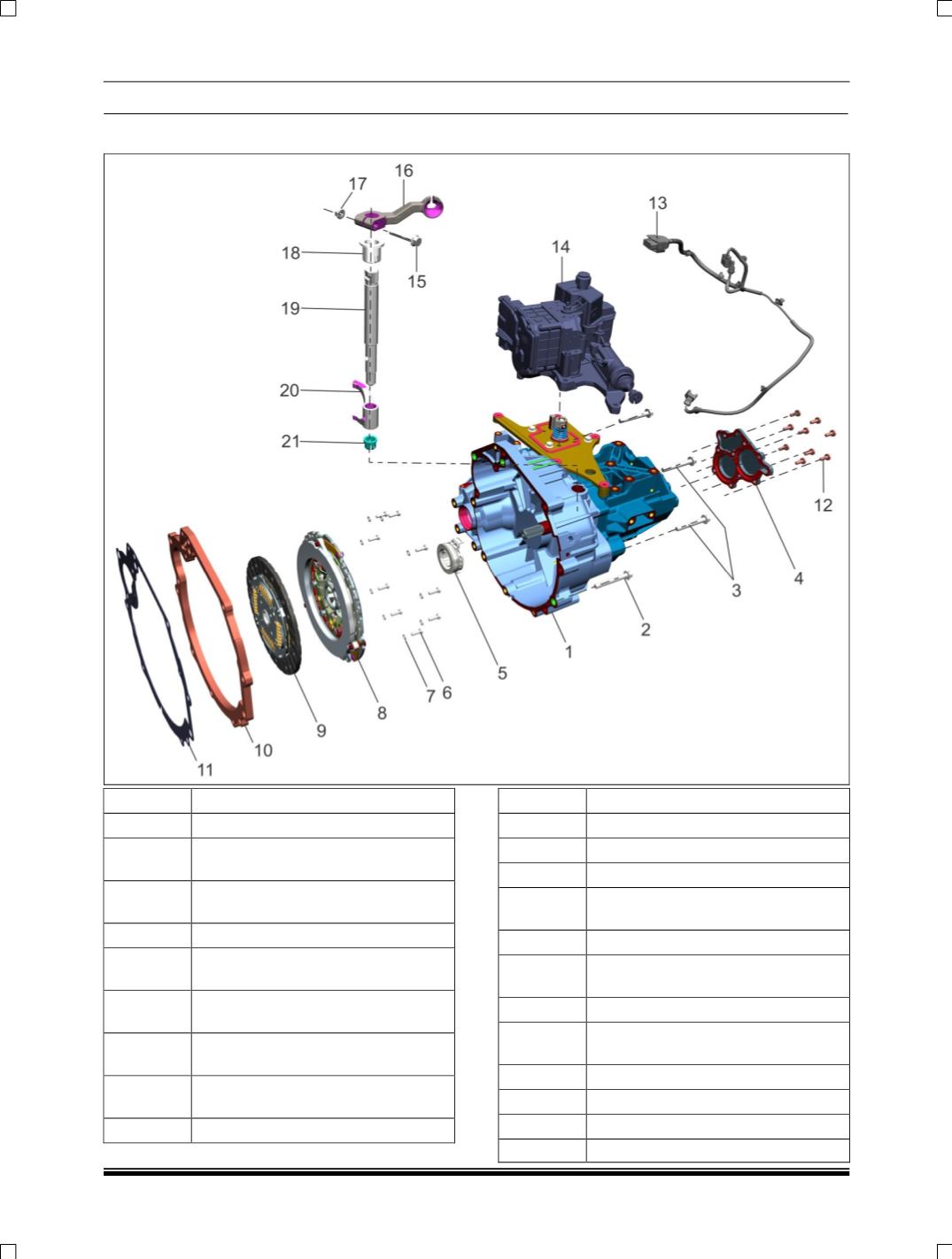

CONSTRUCTIONAL DETAILS
SR. NO.
DESCRIPTION
1
TRANSAXLE ASSY
2
HEX FL BOLT M10X80 TS17130
8.8 SS8451S2-Y
3
HEXFL BOLT M10X75 TS17130-
8.8-SS8451S2-Y
4
COVER REAR HALF
5
CLUTCH RELEASE BEARING
ASSY
6
HEX SCR M6X18 IS1364P2 10.9
SS8451S2-YH
7
SPRING WASHER B6 IS3063
SS8451S2-Y
8
CLUTCH COVER ASSY;DIA 228
SAC
9
CLUTCH DISC ASSY;DIA 228 SAC
10
SPACER
SR. NO.
DESCRIPTION
11
BACK COVER
12
SOCKET HEAD CAP SCREW
13
AMT PIGTAIL ASSY;WIRING
HARNESS
14
KIT-AMT
15
H/FL BOLT M8X45 TS17130-8.8-
SS8451S2-Y
16
CLUTCH RELEASE LEVER
17
HEX FL NUT AM8 TS17430-8-
SS8451S2-Y
18
BUSH;UPPER (ON HOUSING)
19
CLUTCH RELEASE SHAFT
20
CLUTCH RELEASE FORK
21
BUSH; LOWER (ON HOUSING)
