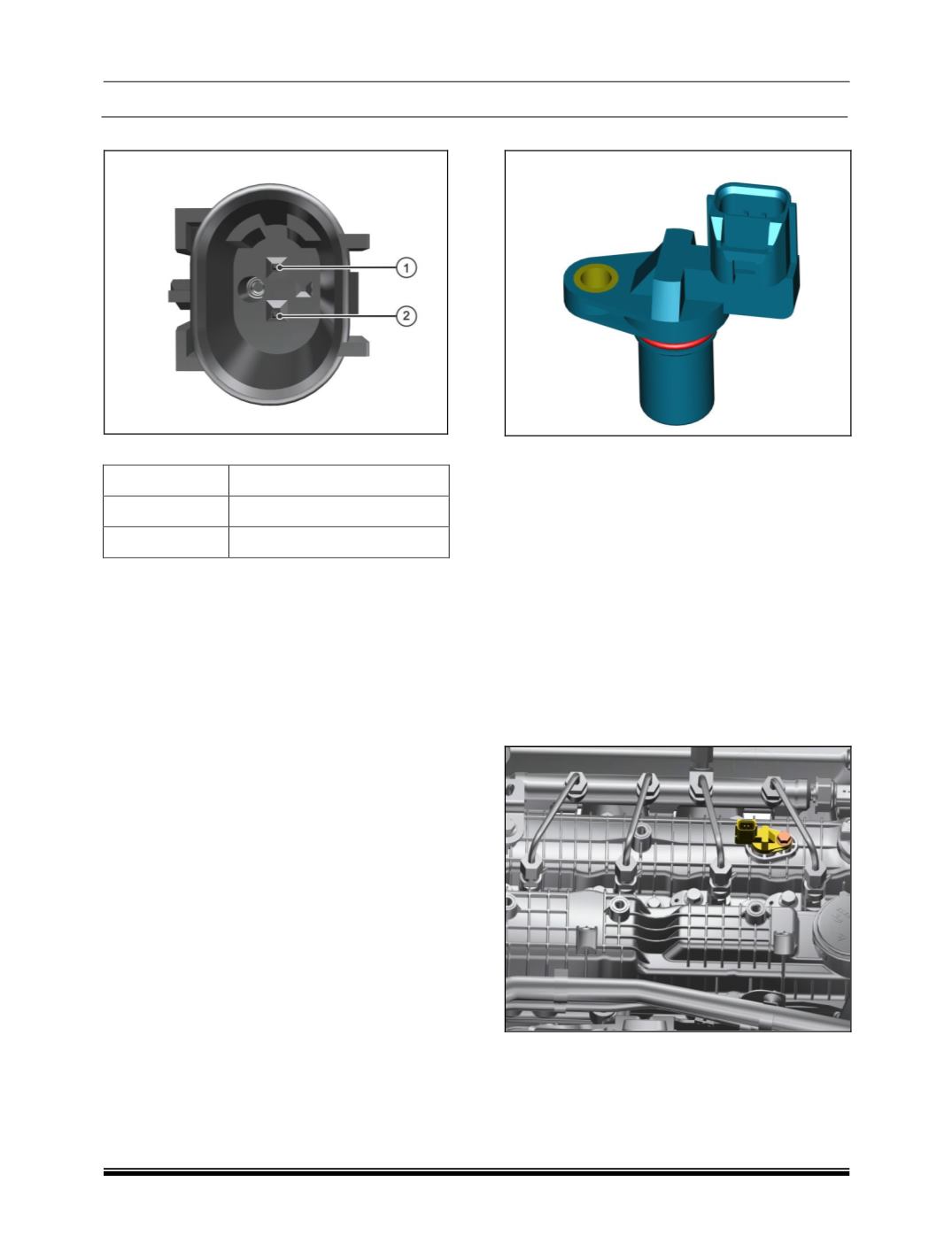

CONNECTOR DETAIL

PINOUT DETAILS

Pin No

Description

Wheel Speed Sensor Signal

Wheel Speed Sensor Supply

Precautions while handling wheel speed

sensor.

1. Storage temperature (-40

C to +50

C) should

not be exceeded.

2. Avoid free fall of the sensor.

3. The sensor tip should not be scratched.

4. Sensor should not be exposed to strong

magnetic field.

5. Tightening torque : 8 ± 2 Nm.

iii. CAMSHAFT POSITION SENSOR

The cam sensor is fitted on the cylinder head

cover. The cam sensor is a magnetic field

sensitive transducer and generates a voltage

output proportional to the rate of change of the

magnetic field near a "camshaft lobe"

configuration. The cam sensor senses the position

of the flag on the Exhaust camshaft and gives

feed back to the ECU regarding the cylinder No.1

(90ºBDC). The sensor gap should be 1±0.4mm.

If the gap is not correct and also the position of

camshafts with respect to crank shaft (set during

assembly), the engine will not start. While the

engine is running & the cam sensor fails then the

engine will continue to run till the engine will stop

& will not start again.

SENSOR LOCATION
