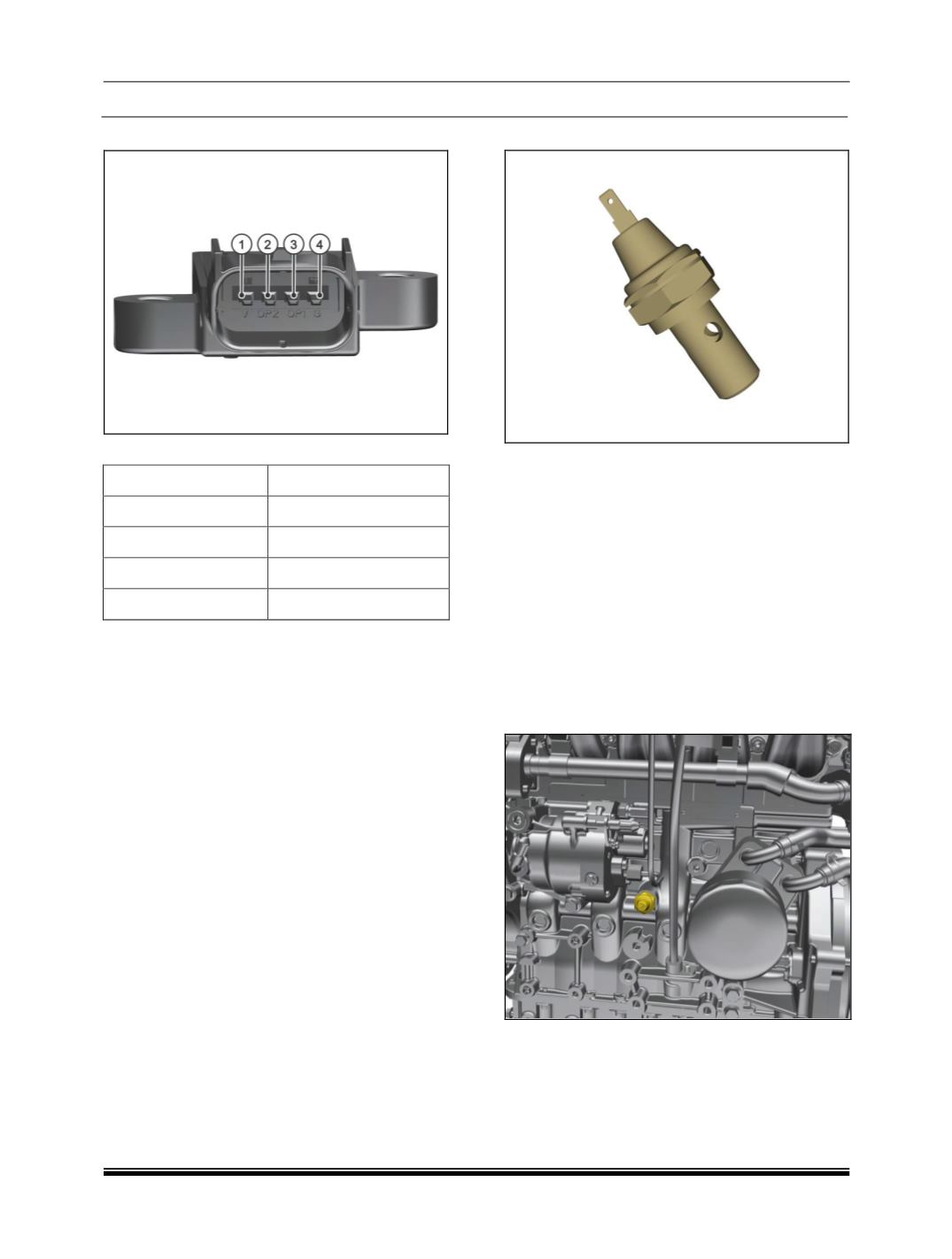

CONNECTOR DETAILS
PINOUT DETAILS
Pin No
Description
1
+ VE
2
O/P - 2
3
O/P - 1
4
- VE
x. OIL PRESSURE SWITCH
Oil Pressure switch is installed on the engine
block to check pressure in oil gallery. If the oil
pressure is detected as low, it Switch On the "Low
Oil pressure" tell-tale in the Instrument Cluster.
This information is very useful for the customer so
as to alert him to check the engine oil level in the
dip stick and top up the oil to bring it closer to max
mark level.
This switch is Normally Closed contact type and
opens only when oil pressure is above the range
of 0.6 to 0.9 Kg/
Sq.cm. It has a spring loaded
diaphragm which opens up to generate OK signal.
Otherwise if pressure is below the designated
range, the tell-tale on Cluster gets ON.
SENSOR LOCATION
