1.5L REVOTORQ ENGINE
57

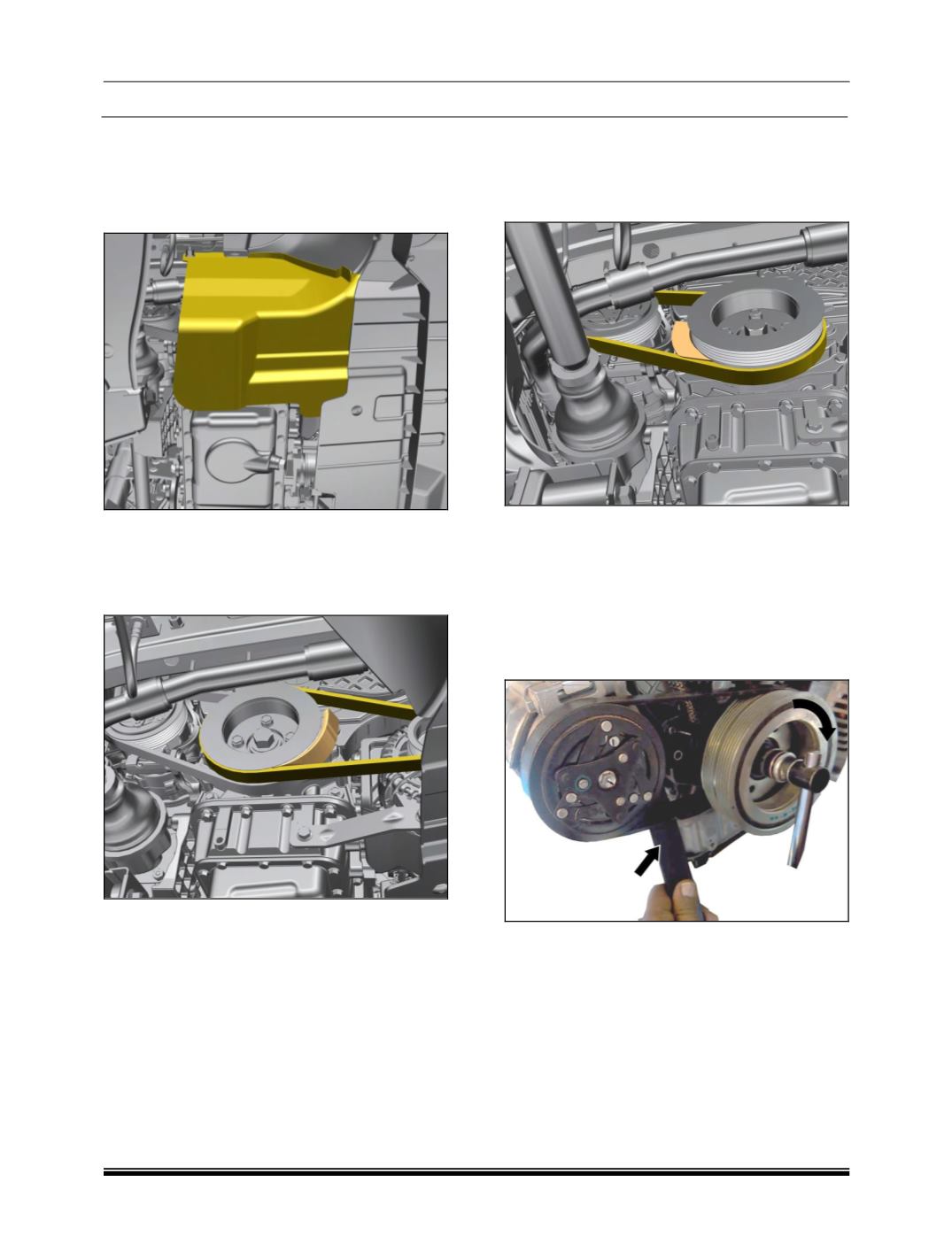

vi. AC COMPRESSOR, ALTERNATOR BELT
REPLACEMENT
REMOVAL
1. Lift the vehicle and remove the RH side front
mud liner.
(For procedure refer body section).
2. Insert the alternator belt removal special tool
(part no. 5427 5890 0602)
as shown and
rotate the crankshaft pulley in clockwise
direction to pop out the belt; then remove the
alternator belt.
3. Insert the AC compressor belt removal special
tool
(part no. 5438 5890 0601)
as shown and
rotate the crankshaft pulley in anticlockwise
direction to pop out the belt. Remove the AC
compressor belt.
REFITMENT
1. Place the AC compressor belt on the
compressor pulley.
2. Place the other end of AC compressor belt on
damper pulley.
3. Place the panel popper tool as shown in fig. &
rotate the damper pulley in clockwise
direction.
4. Take out panel popper tool.
5. Place the stretch belt on the alternator pulley.
