1.2L REVOTRON ENGINE
164

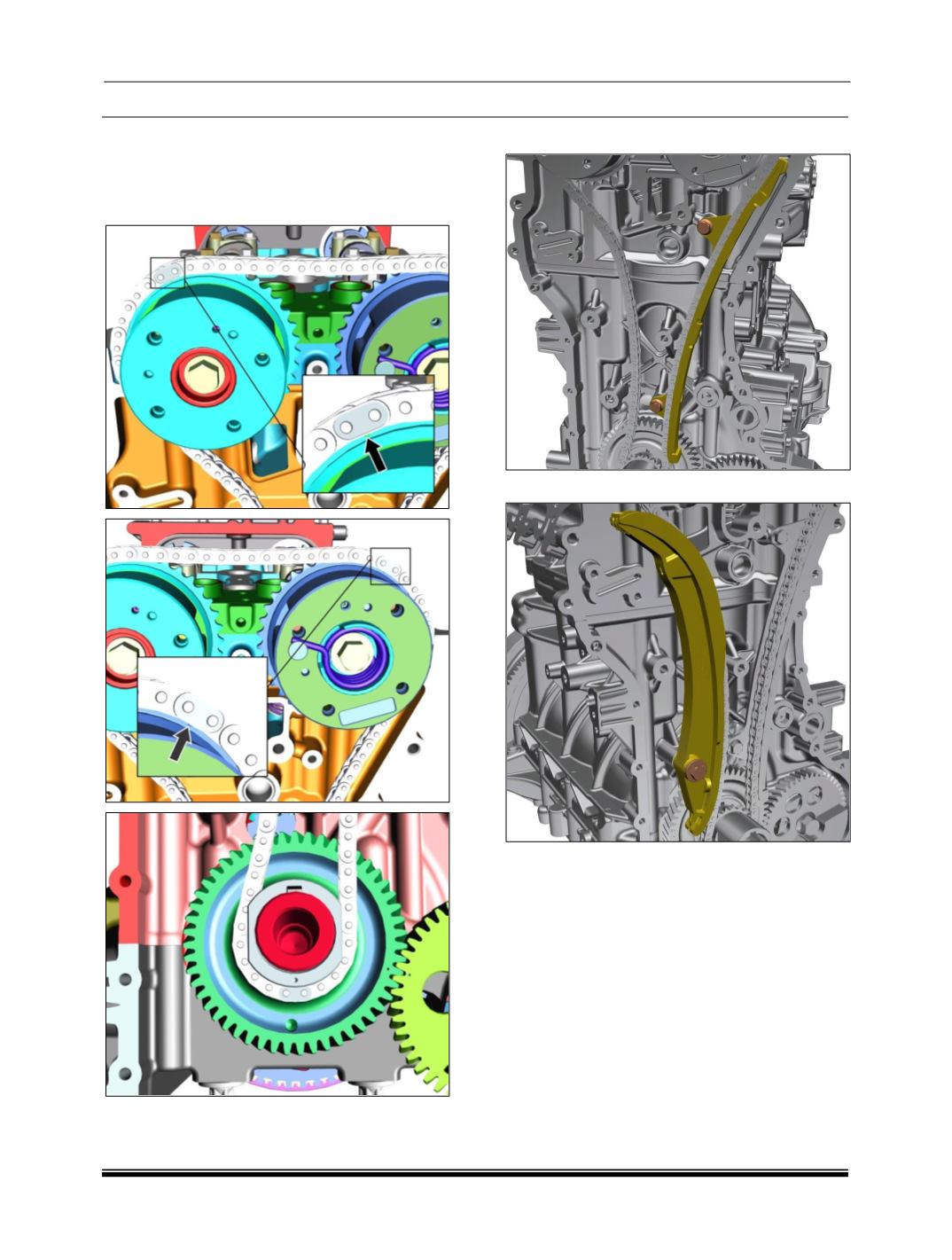

7. Now place the chain over VCT, exhaust
sprocket and crankshaft sprocket in such a
way that the 3 copper color links of chain
matches with the dimple marks of all the 3
sprockets respectively as shown.
8. Assemble the fixed guide rail.
9. Assemble the movable guide.
