1.2L REVOTRON ENGINE
159

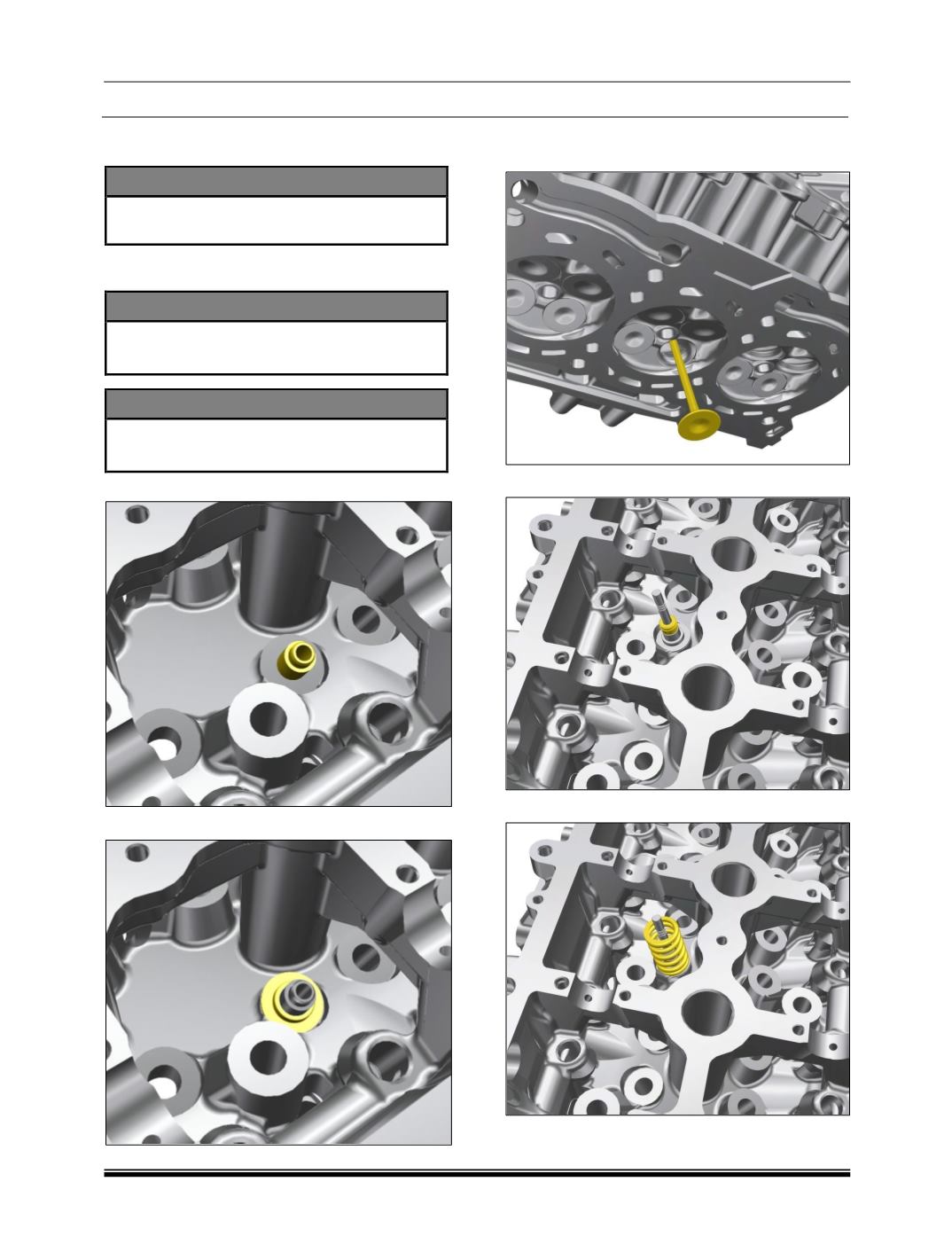

III. Assembly of Cylinder Head Sub-
Assemblies
NOTE
Ensure the readings are within the
specified limits.
1. Move the valve spring compressor rail to the
exhaust side of the cylinder head.
SPECIAL TOOL
Valve Spring Compression Tool -
2829 5890 06 05
SPECIAL TOOL
Valve Spring Compression Support Rail –
5424 5890 06 06
2. Insert the valve guide.
3. Place the spring seat.
4. Assemble the Intake valve to respective
location to cylinder head.
5. Assemble the valve guide seal.
6. Insert the valve spring.
