1.2L REVOTRON ENGINE
113

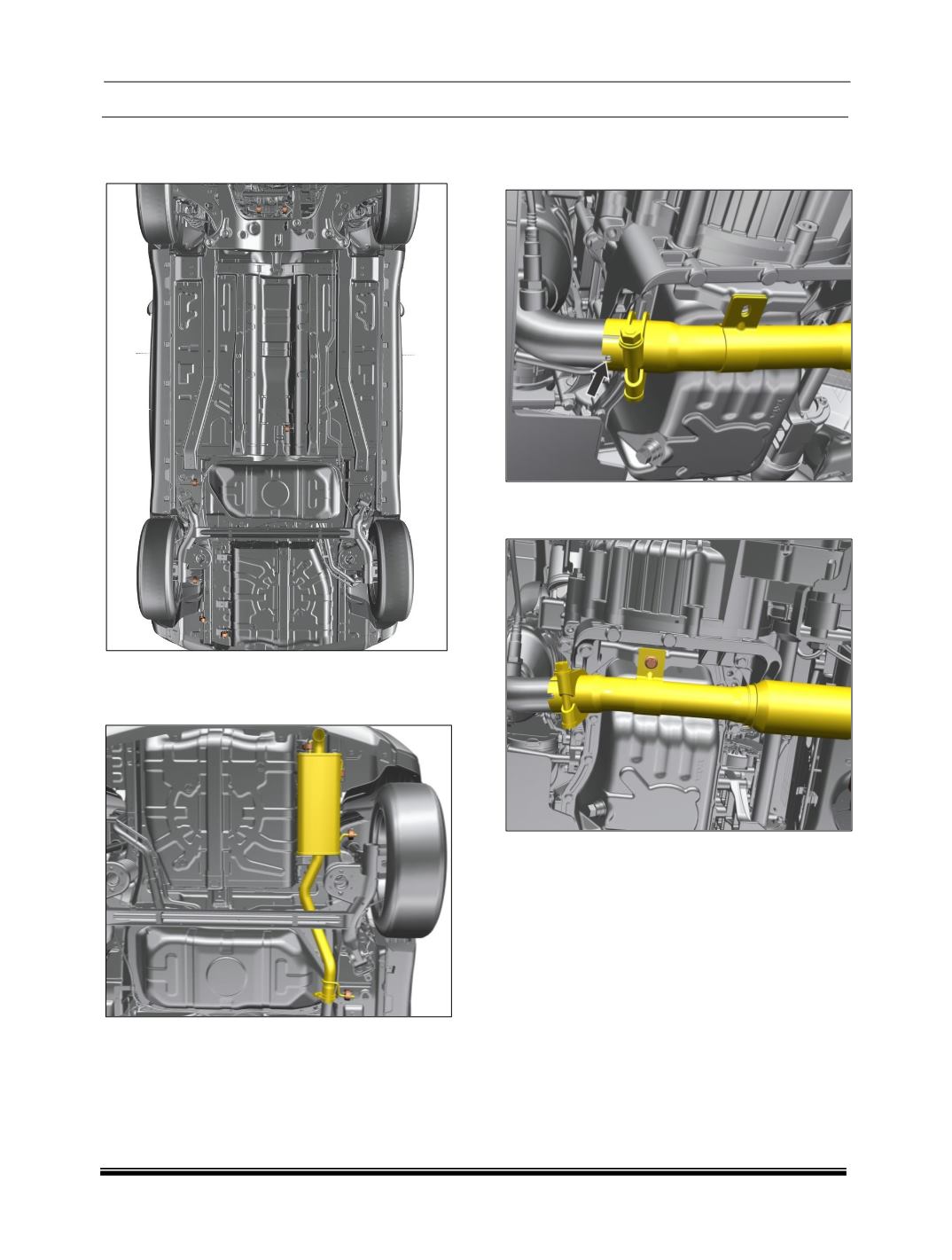

EXHAUST PIPE FITMENT
1. Mount all rubber hanger on BIW rod hangers.
2. Insert exhaust rear assembly into rubber
hangers. (Ensure proper orientation of rear
assy. rubber hangers)
3. Insert exhaust front pipe in hot end pipe up to
stopper touch. Just hand tighten the fasteners
of pipe in pipe joint clamp.
4. Match front pipe mounting bracket to engine
bracket and hand tighten the fasteners.
