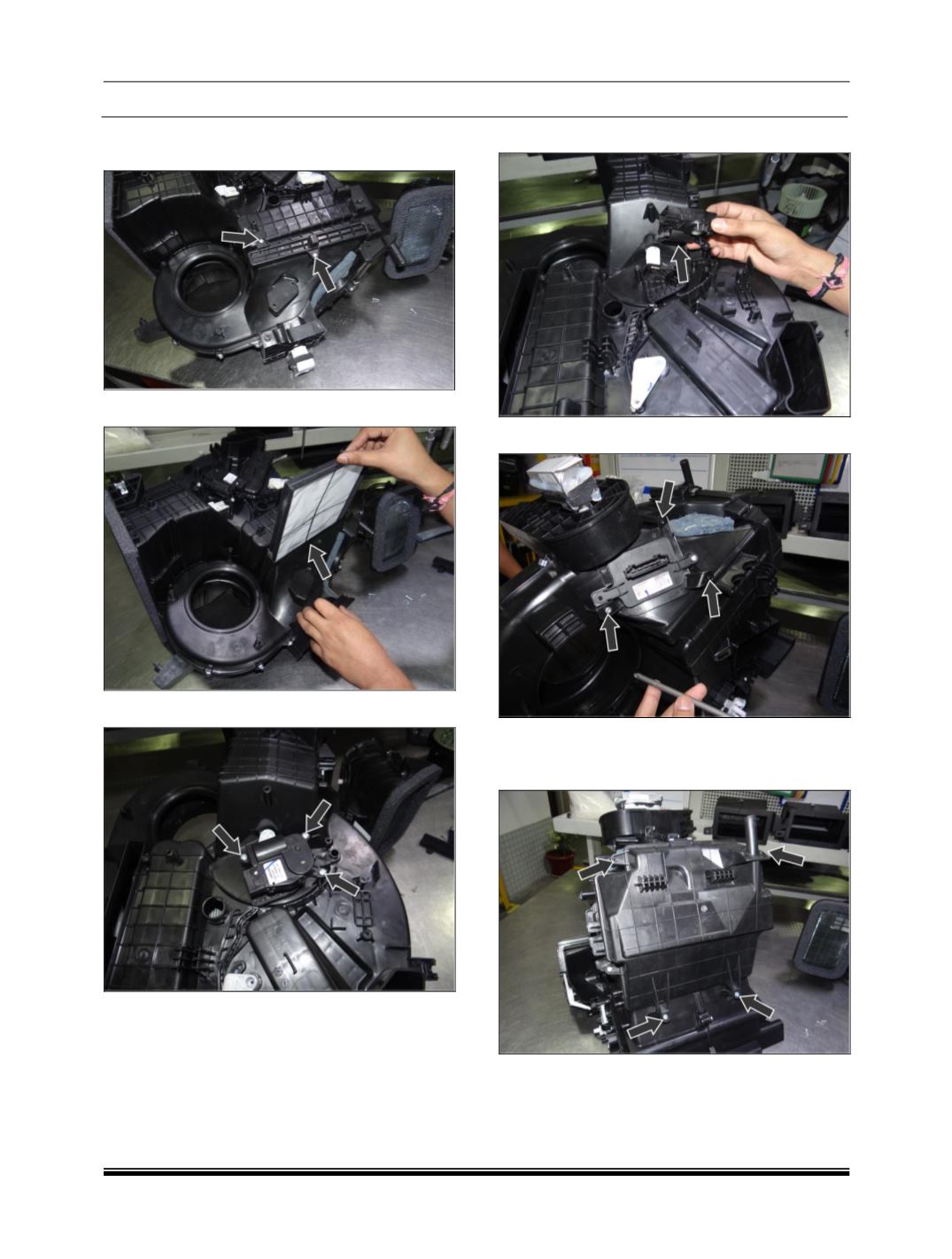

19. Remove screws & take out filter cover Bracket
as shown.
20. Pull out Filter as shown.
21. Remove three mounting screws as shown.
22. Take out the actuator.
23. Remove all screws & take out resistor.
24. Remove all mountings screws as shown & Sepa-
rate the evaporator housing cover from air intake
/ FATC unit.
