NEXON

ELECTRICAL

112

1.24 IGNITION KEY (If Applicable)

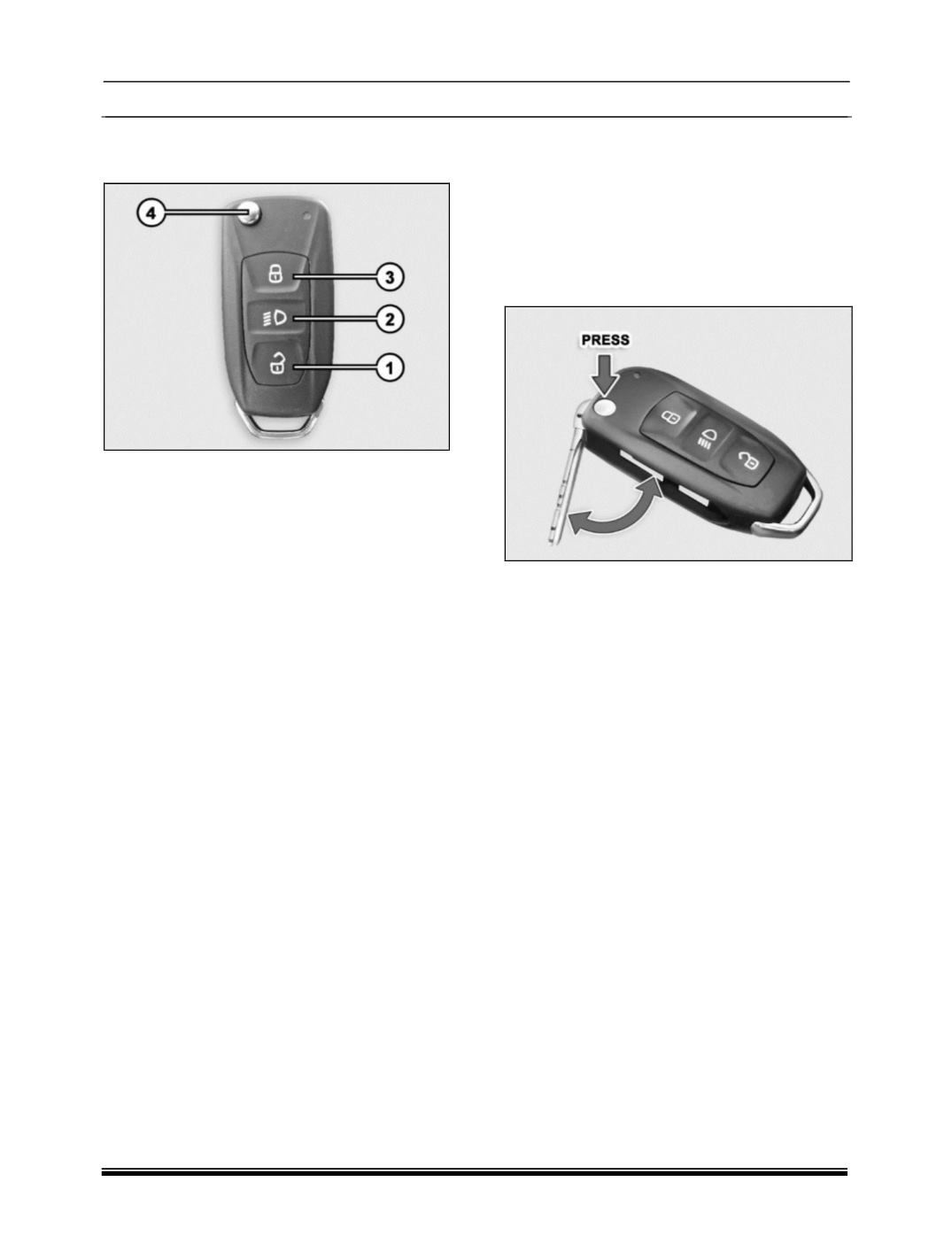

1. FLIP KEY WITH REMOTE

FUNCTIONAL DETAILS

1. Unlocking all doors.

2. Approach light/ Tailgate opening

3. Locking all doors

4. Folding key blade in/out

1. Unlocking all doors

Pressing the unlock push-button (1) of remote will

unlock all the Doors.

2. Approach light

Press approach light button (2) once, low beam,

position, roof lamp will turn ‘ON’.

This feature helps to find and reach the parked

vehicle or to reach home in dark/ cloudy condition

after parking. Red LED will be flash on the

remote. To switch ‘OFF’ the approach lights,

press and re- lease the same button or it

automatically turns ‘OFF’ after certain time.

Tailgate Unlatch

To unlatch the Tail gate, long press the approach

light button (2) on remote for more than 2 sec.

NOTE

Tailgate once unlatched will not get lock

automatically with

doors.it

will locked by slamming

3. Locking all doors

Pressing the Lock push-button (3) once.

Remote locks all the doors of the vehicle.

. Folding key blade IN / OUT

Press button (4) to flip out the key blade.

For folding, press the button (4) and fold the key

blade inside.

NOTE

Key Blade should not be fold without pressing the

button. In addition, it should not be force in any

direction apart from folding direction to avoid

damage to Flip Mechanism

Flip key Features

Vehicle search

In vehicle locked condition if lock button on

remote key is pressed the turn indicators of

vehicle flashes 4 times.

Automatic activation of immobilizer

If key is removed from ignition, the engine will be

immobilized automatically even if you forget to

lock the vehicle.

For few variant, Ignition off is required to

immobilize the vehicle.

Auto locking / unlocking of doors / auto relock



Vehicle doors get automatically locked when

all doors are closed and the vehicle speed

crosses 10 kmph. Please refer section starting

and driving for more information.



When ignition key is taken out all the doors,

get automatically unlocked.



For few variant, when ignition is turned off all

the doors get automati- cally unlocked.
