ELECTRICAL
109

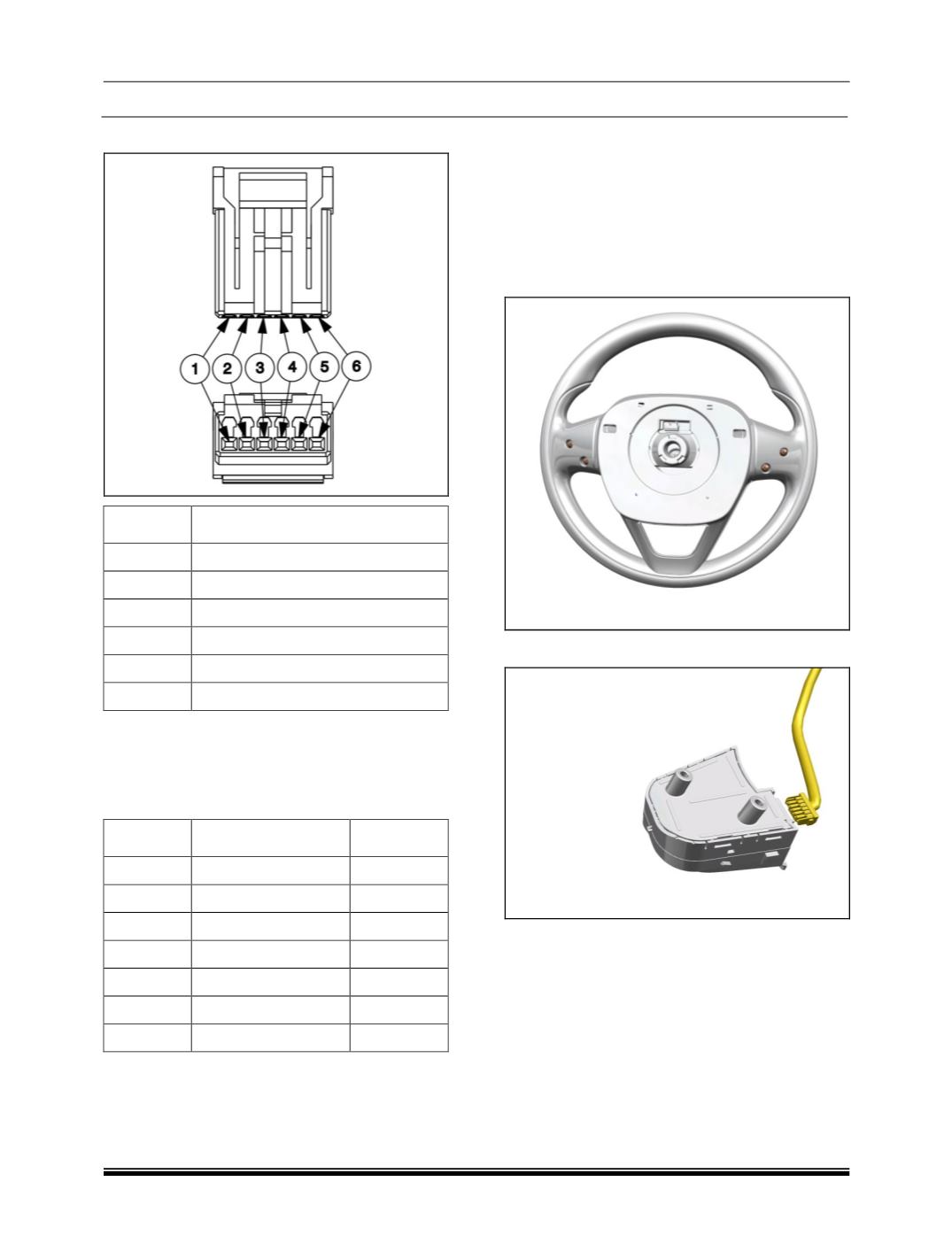

Switch main connector
PIN
DETAIL
1
ILL +
2
ILL -
3
Blank
4
Blank
5
Infotainment -
6
Infotainment +
FUNCTION
Steering wheel switches are used to control the
music system operations.
For details ref below table
SWITCH
FUNCTION
POSITION
SW1
Seek Down
LH
SW2
Source
LH
SW3
Seek up
LH
SW4
Phone Reject / Mute
LH
SW5
Volume Up
LH
SW6
Volume Down
LH
SW7
Phone Accept / PTT
RH
LOCATION
It is located on the steering wheel.
REMOVAL
1. Remove steering wheel. Refer “Removal &
Refitment of steering wheel" from Steering
Section
2. Remove the back cover of the steering wheel.
3. Remove electrical connections.
4. Take out the switches.
INSTALLATION
1. Locate the switches on the steering wheel.
2. Fit the bottom cover of steering wheel.
3. Tight the mounting screws of both the switches.
Tightening torque: 2.0 ± 0.5 Nm
4. Fit the steering wheel.
