BODY
17

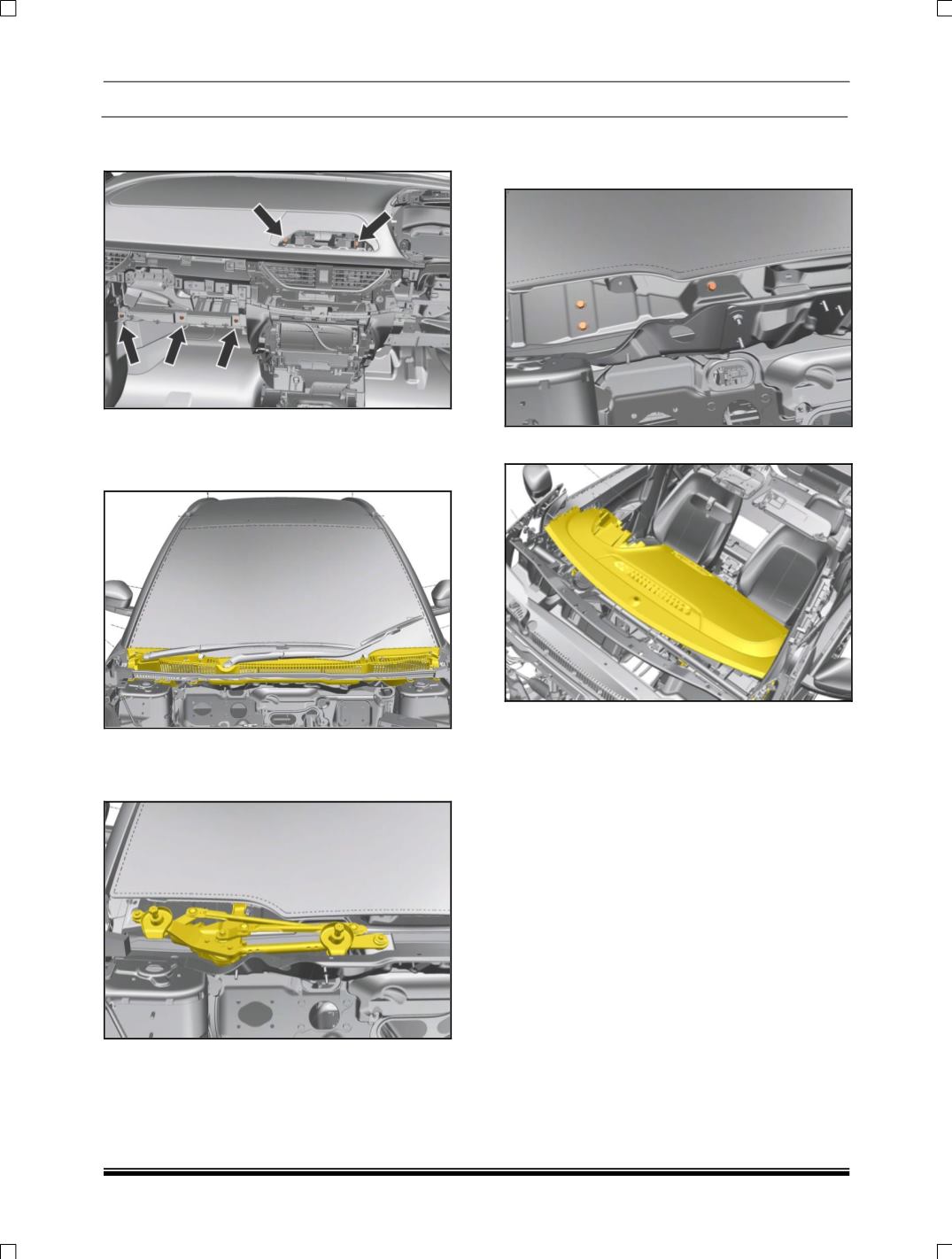

29. Remove mounting bolts of dashboard (
Torque 10 kg-m)
30. Open the Bonnet.
31. Pay out seven Grommet pin and pull out
plenum cover ,
32. Remove Front Wiper (For procedure refers
Front Wiper removal process in Wiper
section.)
33. Remove mounting three (M8X110) bolts of
cockpit from engine side.( Torque 2.25 ± 10%
kg-m))
34. Pull out cockpit with dashboard
FITMENT
For fitment follow reverse procedure of the
removal.
