TRANSAXLE TA6300
23

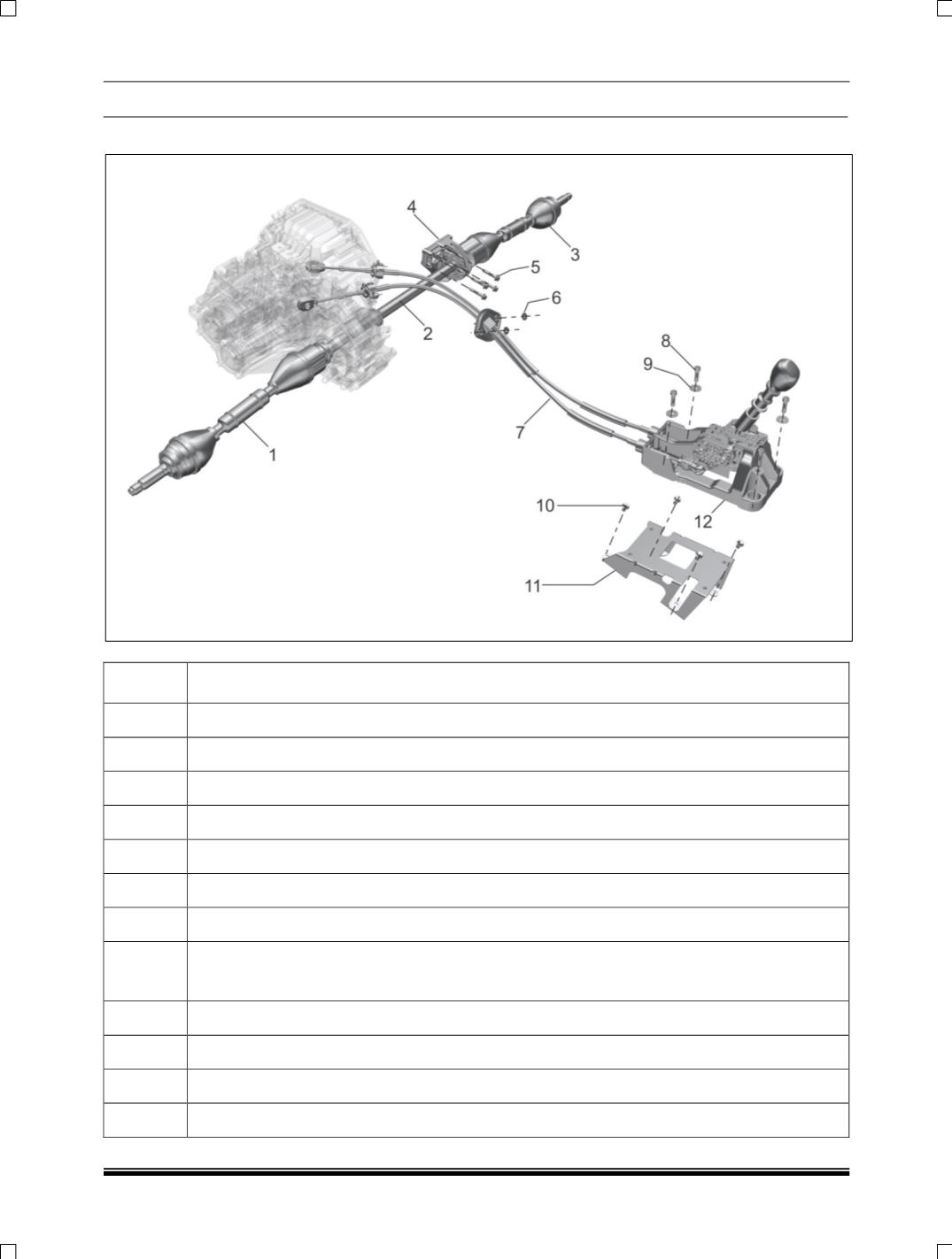

EXPLODED VIEW OF GEAR SHIFT LINKAGE ASSEMBLY:
SR. NO.
DESCRIPTION
01
DRIVE SHAFT ASSY,LH
02
ASSY.INTERMEDIATE SHAFT (RH)
03
DRIVE SHAFT ASSY,RH
04
BRACKET (INTERMEDIATE SHAFT)
05
HEX FL BOLT M10X45 TS17130-8.8- SS8451S2-Y
06
WASHER A6.4 IS5370 ST SS8451S2-Y & HEX FL NUT AM6
07
ASSY CABLE (OSPREY)
08
CAP SCREW M8X30 IS2269-12.9-
SS9400
09
WASHER A8.4 IS5370 ST SS8451S2-Y
10
H/FL SCR M8X16 TS17130-8.8- SS8457S1-S-B
11
GEAR SHIFTER MTG BKT ASSY
12
GEAR SHIFT UNIT
