TRANSAXLE TA6300
21

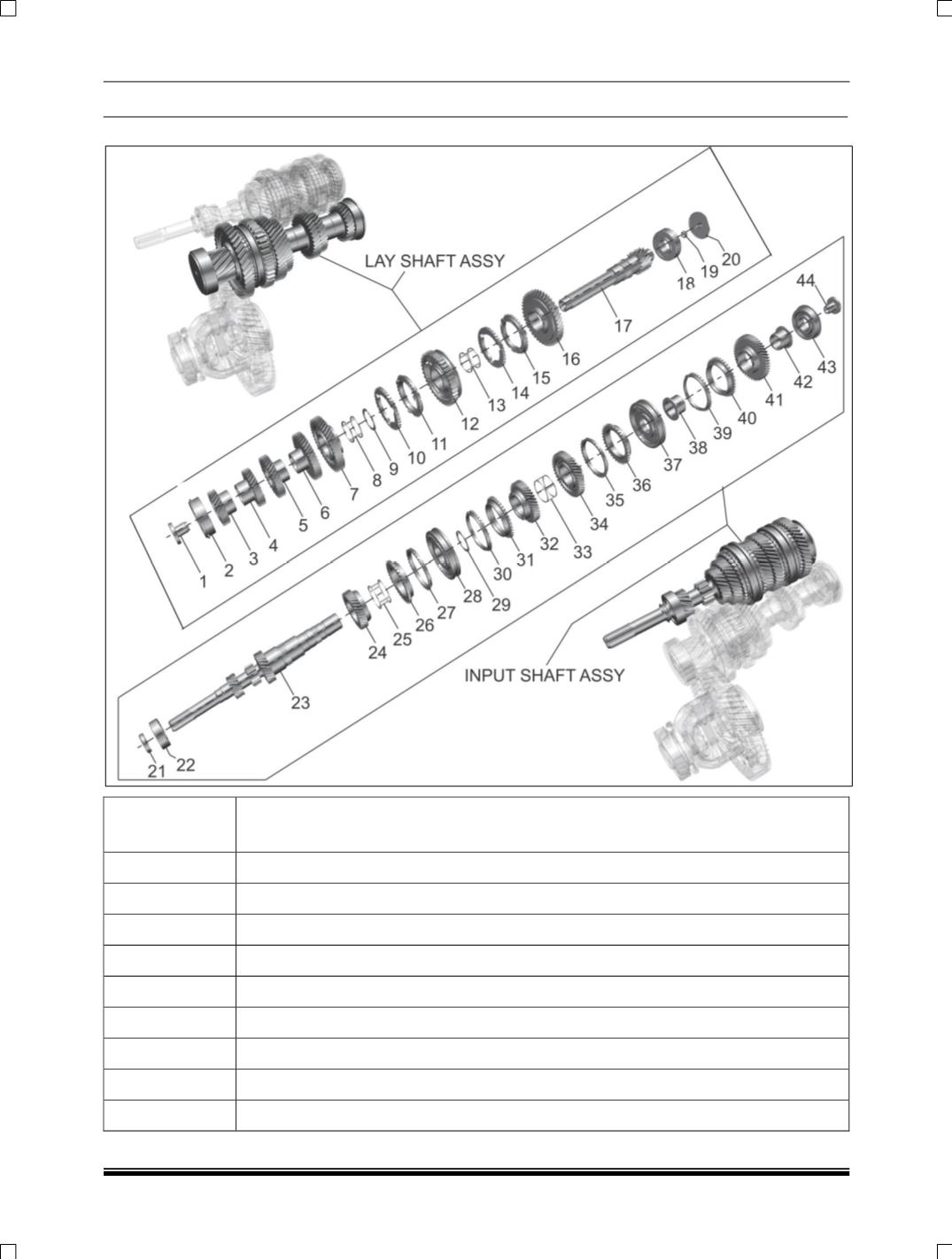

EXPLODED VIEW OF LAY SHAFT AND INPUT SHAFT:
SR. NO.
DESCRIPTION
1
LOCKING SCREW M18 x 1.5 LH
2
DEEP GROOVE BALL BRG.(LAY SHAFT)
3
GEAR,6TH SPEED,LAYSHAFT(RATIO: 0.578)
4
5TH SPEED GEAR LAYSHAFT(RATIO: 0.69)
5
4TH GEAR,LAYSHAFT(RATIO: 0.895)
6
3RD GEAR,LAYSHAFT
7
GEAR,2ND SPEED,LAYSHAFT(1.913)
8 & 13
NEEDLE CAGE (1ST GEAR LAYSHAFT)
9
SNAP RING
