477 / 1133

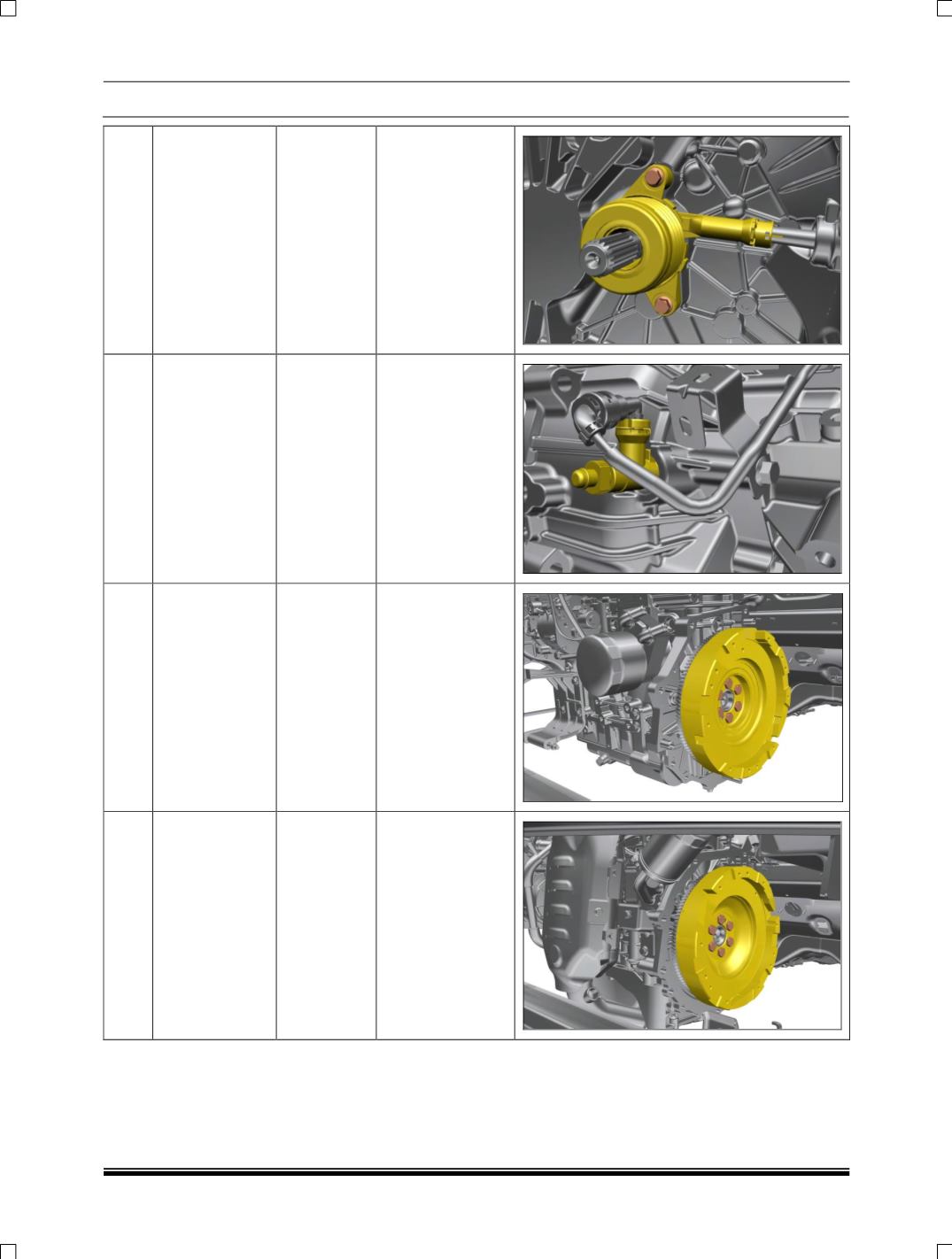

CLUTCH
9
5
Mounting
Screws
(Concentric
Slave Cylinder
to clutch
housing)
Hex. FL
Screw
M6X30
(2 Nos.)
(10.9)
A
. Initially tighten
both the screws
to torque of 0.5.
B
. Finally tighten
the screws to 1.2
± 0.18
6
Bleeding valve
on Hydraulic
Adapter
-
Hand operated
ON/OFF knob
7
Mounting Bolt
(Flywheel to
crank shaft)
(FOR DIESEL)
Hex Bolt for
Flywheel
A
. Initially tighten
the bolt to torque
of 3.3 ± 0.3.
B
. Finally tighten
the bolt by 55
o
±
5
o
angle
8
Mounting Bolt
(Flywheel to
crank shaft)
(FOR
PETROL)
Hex Bolt for
Flywheel
A
. Initially tighten
the bolt to torque
of 3.3 ± 0.3.
B
. Finally tighten
the bolt by 55
o
±
5
o
angle
